Description

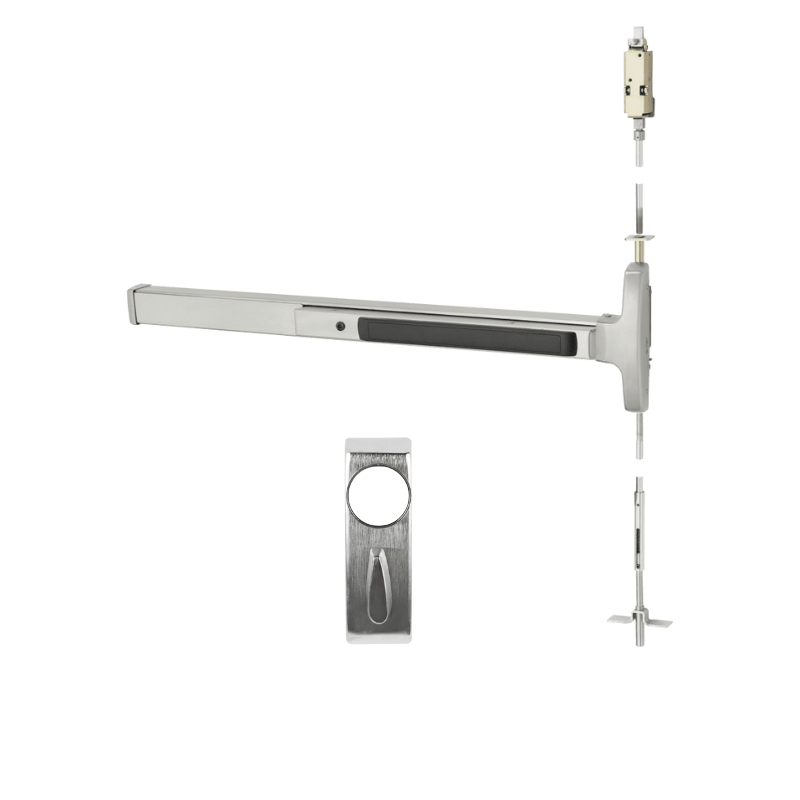

Sargent AD8410G-106-US32D Narrow Stile Concealed Vertical Rod Exit Device, 43-48" Width, 106 Aux control, Less Cylinder, No Pull, Hex Key Dogging, 84 in Ht, Grade 1, 630 Satin Stainless Steel Finish
The Sargent AD8410G-106-US32D is a Grade 1 narrow stile concealed vertical rod exit device designed for doors 43-48" wide and 84" high. It features 106 auxiliary control, comes without a cylinder or pull, and includes hex key dogging. Finished in 630 satin stainless steel, this robust exit device offers reliable security and durability for demanding commercial applications.
Features
- Designed for narrow stile aluminum door applications (e.g., full glass doors)
- Concealed rods for security and aesthetics
- UL10C (Fire) and UL305 (Panic) listed
- 106 Aux Control
- Devices are ANSI/BHMA A156.3 - Grade 1
| Sargent Function Numbers | ANSI Function Numbers | Description & Cylinder Info | AD8400 Panic |
| 06 | 12 |
Key unlocks Turn, Turn retracts latch/Turn relocks when key is removed Less Cylinder |
AD8410 x 106 |
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Concealed Vertical Rod |
| Mechanical Function | Mutli-Function |
| Device Length | 48" |
| Hand | LHR or RHR |
| Dogging Options | Hex Key Dogging |
| Top Strike | 640 |
| Strike Bottom | 640 |
| Includes Trim | No |
| Trim Type | Less Trim |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 1 3/4" |
| Door Material | Aluminum |
| Door Width | 34" to 48" |
| Door Height | 84" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Concealed Vertical Rod Exit Devices |
