Sargent 8875-G-ETP-12V Rim Exit Device, Electrified ETP Trim, 12V, Fail Safe, For 43"-48" Dr Width

  • SKU: 8875GETP12VUS32DLHR
Dhs. 6,858.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse
Handing Guide:
handing chart image

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 8875-G-ETP-12V Rim Exit Devic...
Quantity
–
+
From Dhs. 6,858.00
Sargent Rim Cylinders - Multiple Keyw...
Quantity
–
+
From Dhs. 417.00
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From Dhs. 1,434.00
Total

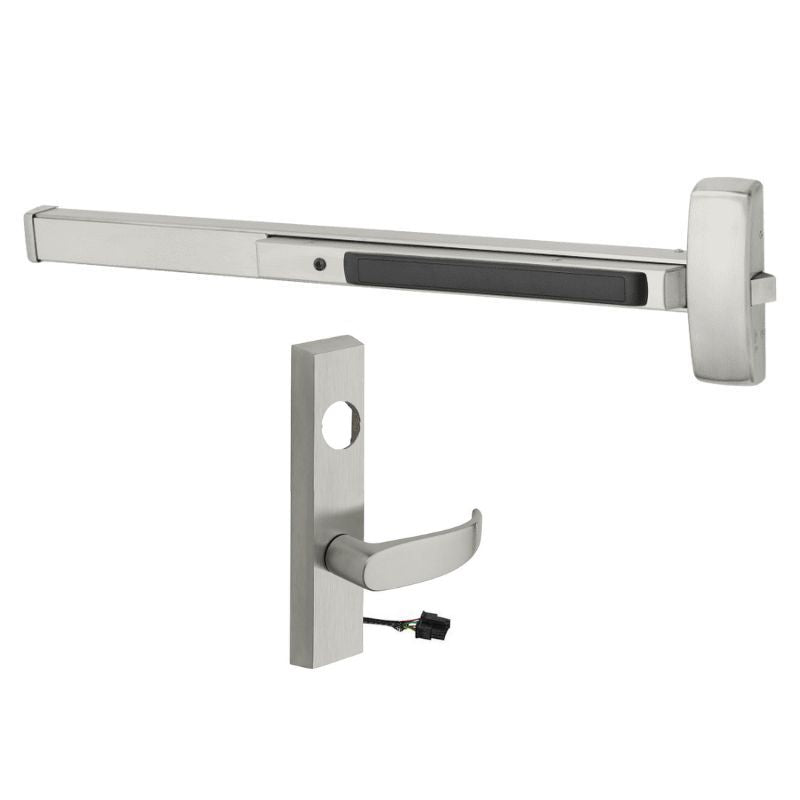

Sargent 8875-G-ETP-12V Rim Exit Device, 12V Fail Safe, P Lever, Power off Unlocks Lever Key retracts Latch, 43"-48" Inch Door, Less Cylinder, No Dogging, Grade 1

The Sargent 8875-G-ETP-12V Rim Exit Device features an Electrified ETP Trim that is 12V and Fail Safe. It is designed for use with a 43"-48" bar and allows for power off unlocking and key-controlled retraction of the latch by using a lever.

75 Electrified ET Trim - Fail Safe

The Sargent 775-8-ETP-12V Electrified Lever, comes less cylinder with an ETP Trim, Fail Safe Power Off Unlocks Lever Key Retracts Latch function-Cylinder Sold Separately

    Manufacturer Sargent
    Grade Grade 1
    Installation Commercial
    Origin USA
    Unit of Measure Each
    UL Listing Type UL10C & UL305
    ANSI Number ANSI/BHMA A156.3
    Restrictions None
    BAA Qualified Yes
    Limited Warranty 5 Years
    Fire Rated None
    Burglar Rated No
    ADA Compliance No
    Physical Appearance Wide Stile Pushpad
    Device Type Rim
    Mechanical Function Device to Accept Electrified Trim
    Device Length 48"
    Hand RHR OR LHR
    Dogging Options Less Dogging
    Includes Trim YES
    Trim Type ETB
    Includes Cylinder(s) No
    Cylinder Type  LA Keyway Standard
    Minimum Stile Size 4-3/4"
    Door Material Metal or Wood
    Door Width 43" to 48"
    Door Thickness 1-3/4" - 2-1/4"
    Fire Rated No
    Reversible No
    Product Type Rim Exit Devices



    Product Cut Sheet

    Panic Handing Chart
