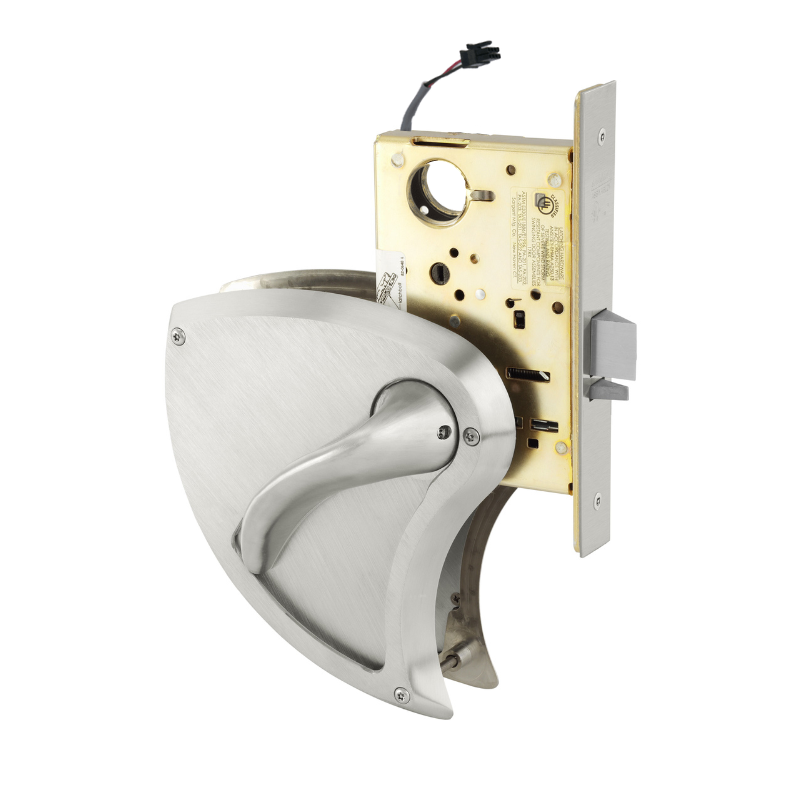

Sargent 8273-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Fail Secure 12VDC, Less Cylinder, Satin Stainless Steel

  • SKU: 8273BHW24VDCUS32DLHLC
Dhs. 6,451.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Handing: LH - Left Hand

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 8273-BHW-24VDC-US32D-LC Behav...
Quantity
–
+
Dhs. 6,451.00
Sargent Mortise Cylinders - Multiple ...
Quantity
–
+
From Dhs. 438.00
Total

Sargent 8273-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Double Cylinder Fail Secure 24VDC, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8273-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock features BHW trim with a double cylinder fail-secure design, operating at 24VDC. This Grade 1 lock is supplied without a cylinder and offers field reversibility. Finished in 630 satin stainless steel, it ensures durability and reliability for demanding healthcare environments.

  • Electrical (Fail Safe) Function:
    • 73 function — Power ON, unlocks both levers
    • Key outside retracts latchbolt
    • Lever outside retracts latchbolt, except when locked
    • Lever outside can only be locked electronically
    • Lever inside always retracts latchbolt
    • Auxiliary deadlatch
  • Key on either side retracts latchbolt
  • Lever from either side retracts latchbolt, except when levers are locked
  • Both Levers can only be locked & unlocked electronically
  • Levers can not be locked separately, only together
  • Auxiliary deadlatch
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Ligature Resistant
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 73 Electrical (Fail Secure)
Lever/Knob Design BHW Lever
Cylinder Type Less Cylinder
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock
