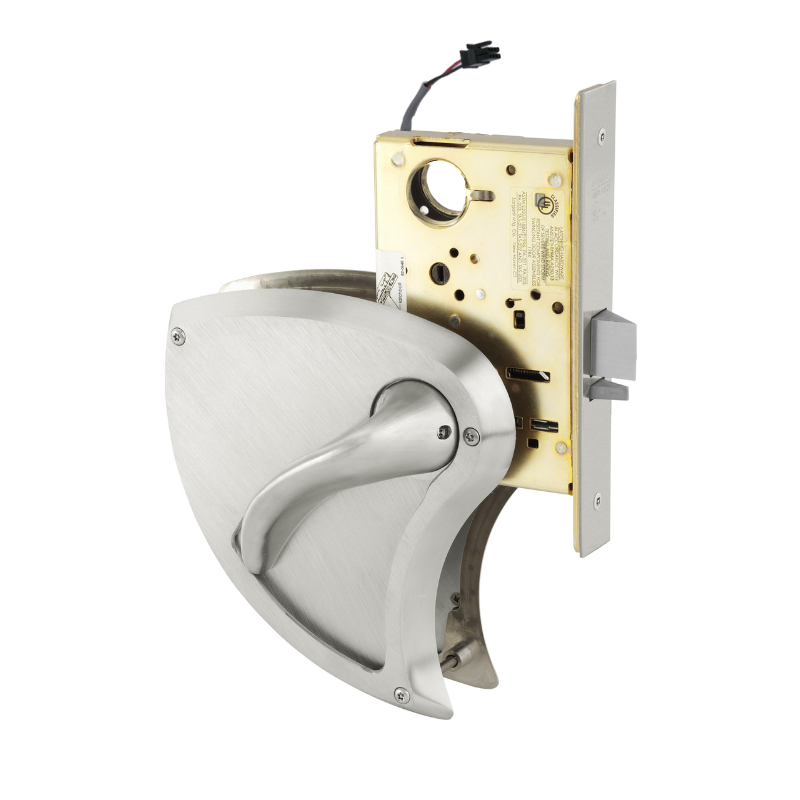

Sargent 8272-BHW-12VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Double Cylinder Fail Safe 12VDC, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8272-BHW-12VDC-US32D-LC Behavioral Health Electrified Mortise Lock features BHW trim and operates as a double cylinder fail-safe at 12VDC. This Grade 1 lock is field reversible and comes without a cylinder. Finished in 630 Satin Stainless Steel, it delivers durable security tailored for behavioral health environments.

• Electrical (Fail Safe) Function:
  • 72 function — Power ON, locks both levers
  • Key on either side retracts latchbolt

  • Lever from either side retracts latchbolt, except when levers are locked

  • Both Levers can only be locked & unlocked electronically

  • Levers can not be locked separately, only together

  • Auxiliary deadlatch
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
