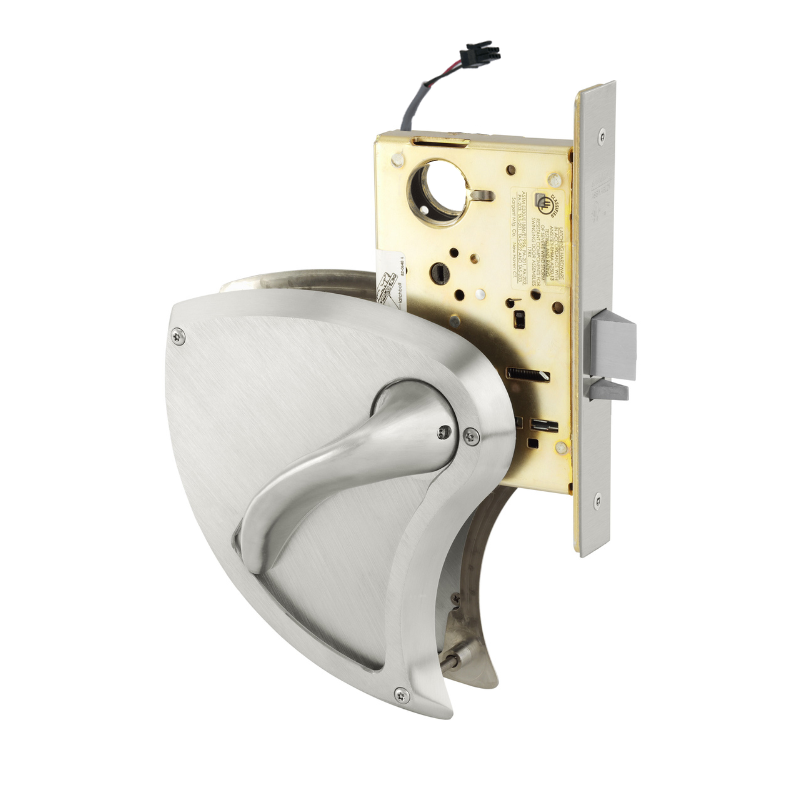

Sargent 8270-BHW-12VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Single Cylinder, Fail Safe 12VDC, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

Sargent 8270-BHW-12VDC-US32D-LC Behavioral Health Electrified Mortise Lock features BHW trim, single-cylinder design, and a fail-safe 12VDC power configuration. This Grade 1 lock is field reversible and finished in 630 satin stainless steel, delivered without cylinder for flexibility.

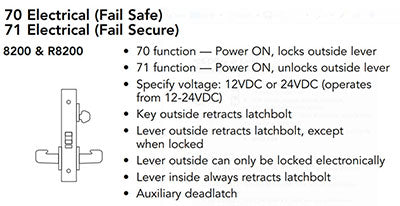

• Electrical (Fail Safe) Function:
  • 70 function — Power ON, locks outside lever

  • Key outside retracts latchbolt

  • Lever outside retracts latchbolt, except when locked

  • Lever outside can only be locked electronically

  • Lever inside always retracts latchbolt

  • Auxiliary deadlatch
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
