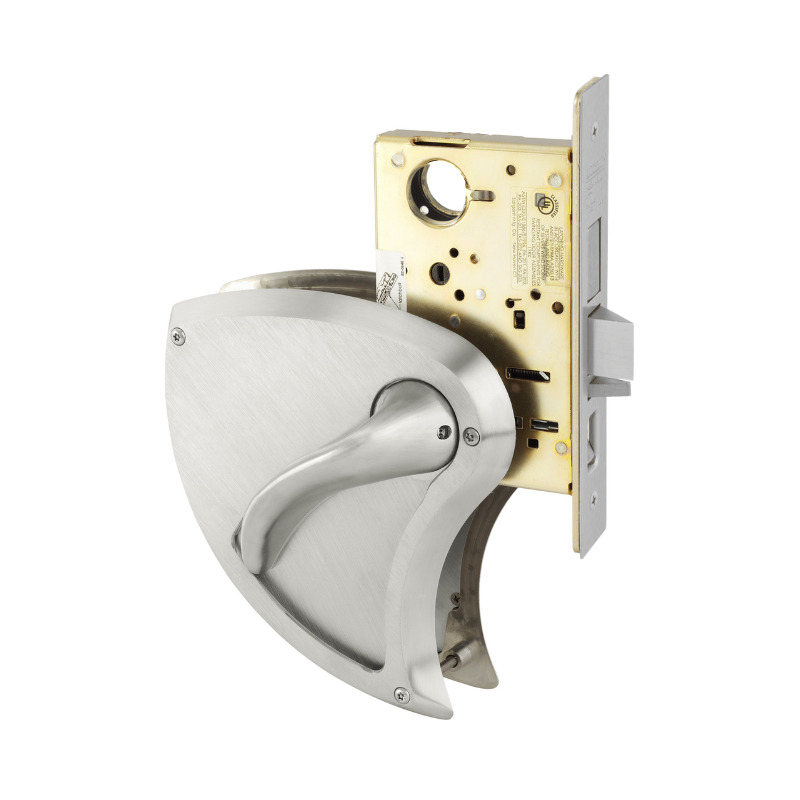

Sargent 8243-BHW-US32D-LC Behavioral Health Apartment Corridor Function Mortise Lock, BHW Trim, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8243-BHW-US32D-LC is a Grade 1 Behavioral Health Mortise Lock designed for apartment corridor applications. Featuring BHW trim and satin stainless steel finish (630), this lock is field reversible and supplied without a cylinder, offering flexible installation options.

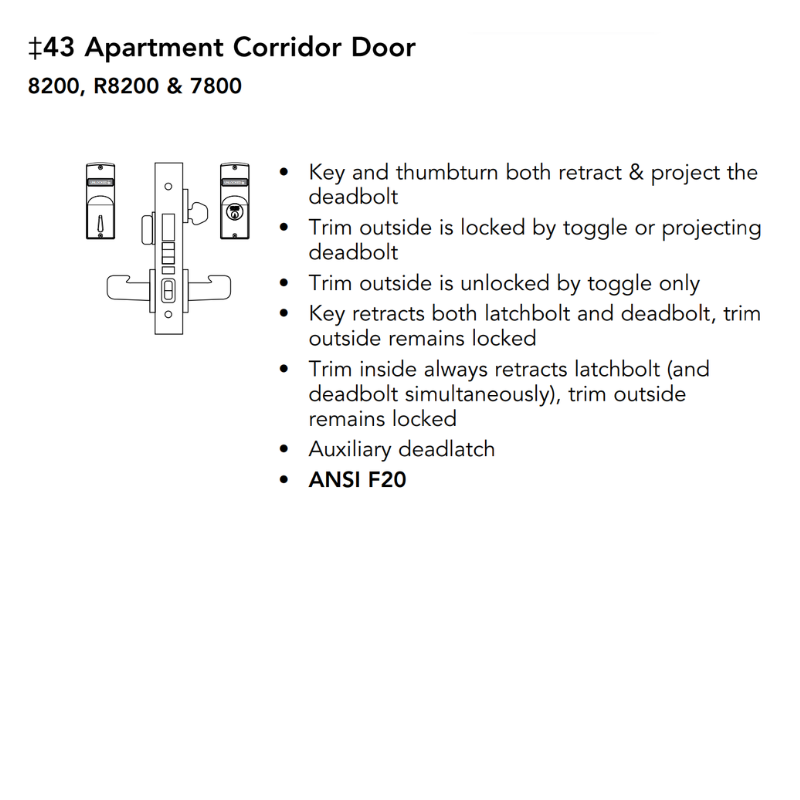

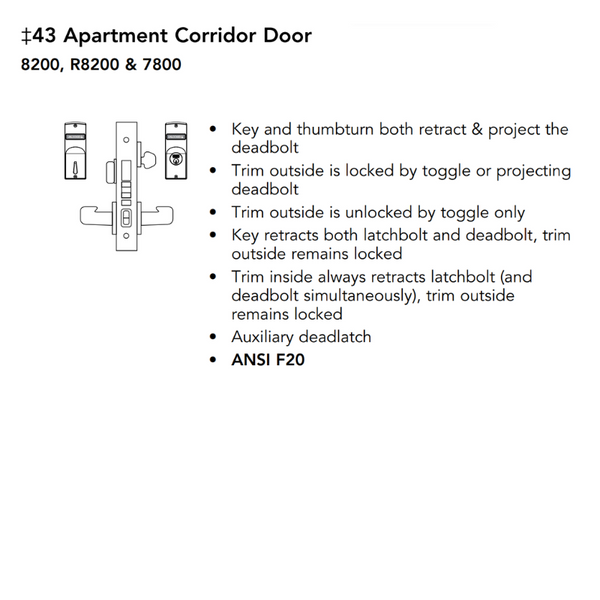

• Apartment Corridor Door Function:
  • Key and thumbturn both retract & project the deadbolt

  • Trim outside is locked by toggle or projecting deadbolt

  • Trim outside is unlocked by toggle only

  • Key retracts both latchbolt and deadbolt, trim outside remains locked

  • Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside
    remains locked Auxiliary deadlatch
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
