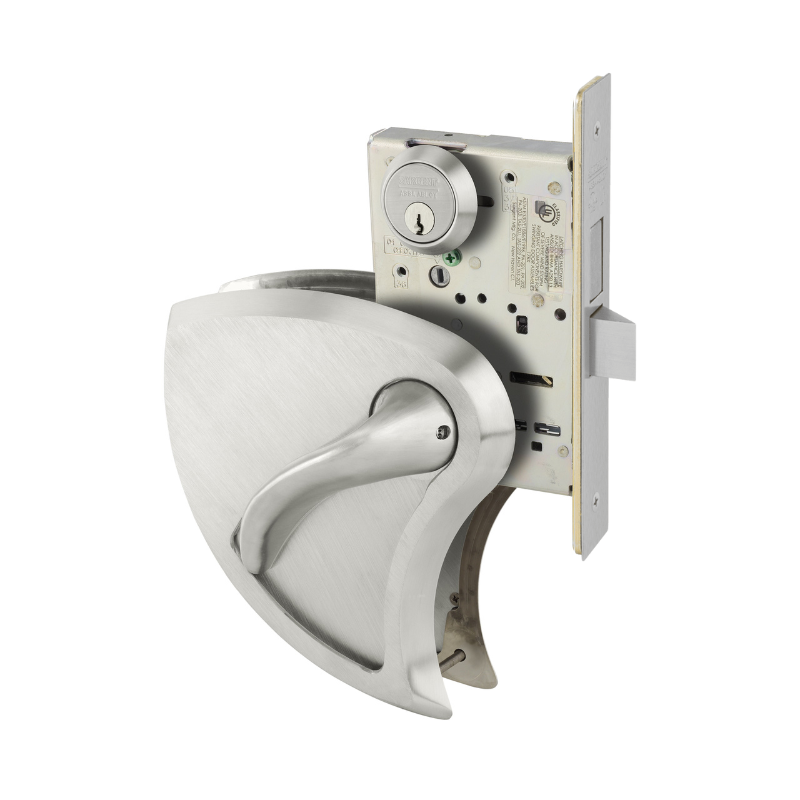

Sargent 8225-BHW-US32D-KD Behavioral Health Dormitory or Exit Function Mortise Lock, BHW Trim, STD LA Keyway Keyed Different, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8225-BHW-US32D-KD is a Grade 1 Behavioral Health mortise lock designed for dormitory or exit applications. Featuring BHW trim and a standard LA keyway with keyed different functionality, this lock offers field reversibility for versatile installation. It is finished in satin stainless steel (630) for durability and a professional appearance.

  • Dormitory or Exit Function:
    • Key outside or thumbturn inside retracts and projects deadbolt
    • Trim from either side retracts latchbolt, when the deadbolt is in the retracted position
    • Trim outside is locked, when the deadbolt is projected
    • When deadbolt is projected, Trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
  • Uses standard mortise prep
  • STD LA Keyway Keyed Different
  • ANSI/BHMA Grade 1
  • Tapered surfaces on all components
  • Handed
  • ADA Compliant
  • 6 Lobe head security screws (Torx® type)
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Liature Resistant
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 25 Dormitory or Exit Function
Lever/Knob Design BHW Lever
Cylinder Type Conventional Cylinder
Num Pins 6
Std. Keyway LA
Keying Keyed Different
Key(s) Cut
Num of Keys 2
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock
