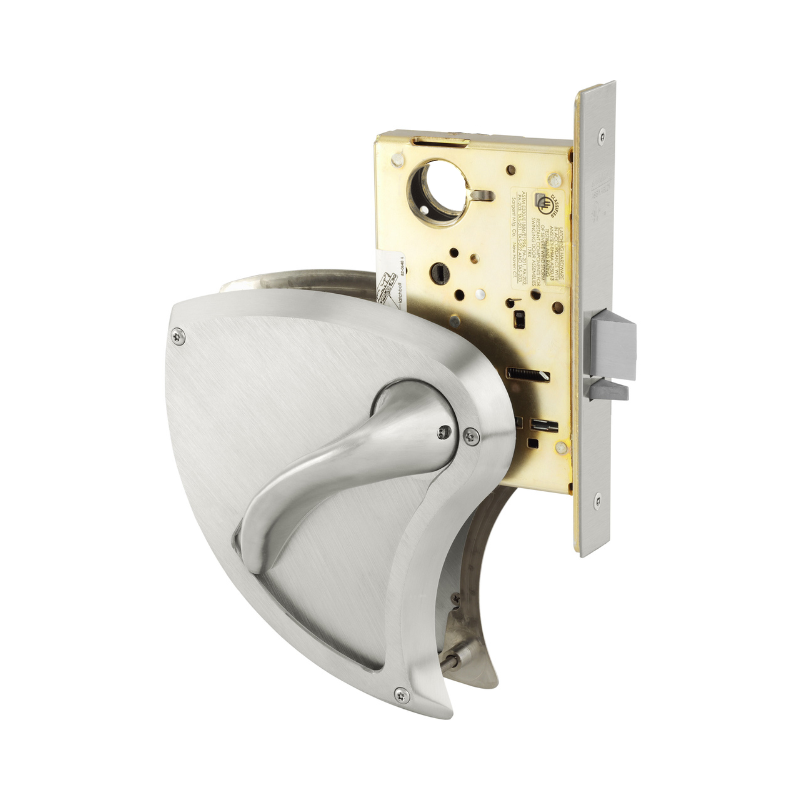

Sargent 8204-BHW-US32D-LC Behavioral Health Storeroom Function Mortise Lock, Key Retracts Latch, BHW Trim, Less Cylinder, Field Reversible, 630 Satin Stainless Steel

The Sargent 8204-BHW-US32D-LC Behavioral Health Mortise Lock features a storeroom function with a key that retracts the latch. It includes BHW trim, is supplied without a cylinder, and offers field reversibility. Finished in satin stainless steel (630), this lock is designed for specialized security applications.

  • Storeroom Function:
    • Key outside retracts latchbolt
    • Trim outside locked at all times
    • Trim inside always retracts latchbolt
    • Auxiliary deadlatch
  • Uses standard mortise prep
  • Less Cylinder
  • ANSI/BHMA Grade 1
  • Tapered surfaces on all components
  • Handed
  • ADA Compliant
  • 6 Lobe head security screws (Torx® type)
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Ligature Resistant
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 04 Storeroom Function
ANSI Function F07 - Storeroom/Exit
Lever/Knob Design BHW Lever
Cylinder Type Less Cylinder
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock
