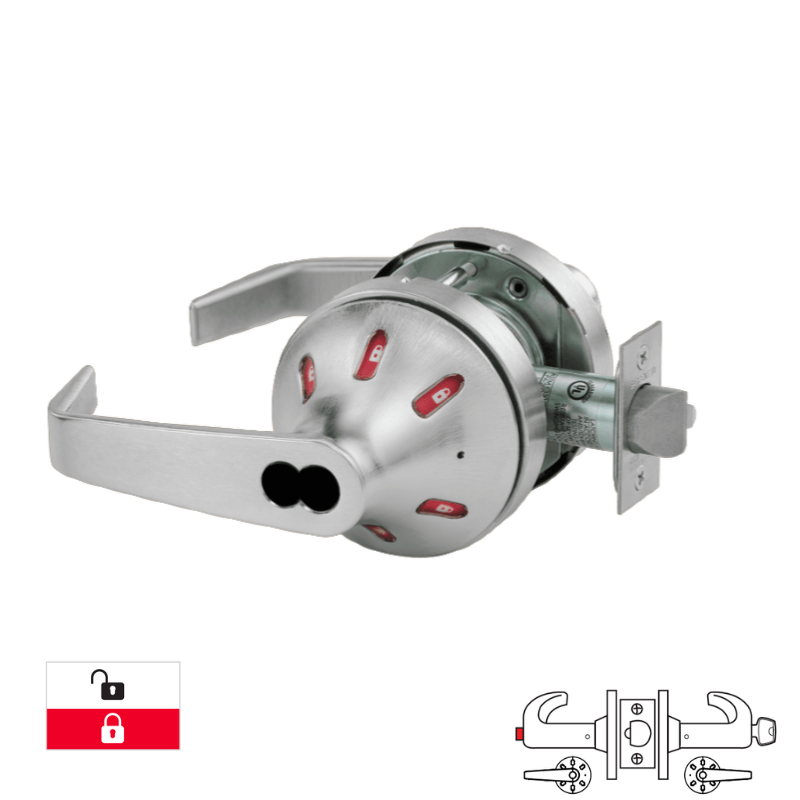

Sargent 70-V66-10XG44-VSLL Service Station Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Both Sides, White/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1

The Sargent 70-V66-10XG44-VSLL Service Station Cylindrical Indicator Lock is a Grade 1 commercial lockset designed for restroom and service area applications requiring clear occupancy indication on both sides of the door. This model features dual visual indicators with white/red icon status on both interior and exterior, paired with an L lever and VSLL rose for a clean, durable appearance. Built with a deadlocking latch and inside pushbutton locking, it allows key override from the outside and meets ANSI/BHMA A156.2 F82A standards for service station function performance. Configured for 1-3/4" to 2" thick doors, it includes a 2-3/4" backset and 4-7/8" strike, accepts an SFIC core (less core), and is well suited for high-traffic commercial and institutional environments where durability and clear occupancy visibility are essential.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F82A

Double Indicator:
