All SARGENT Products

Sargent 70-V66-10XG37-VSLL Classroom Function Cylindrical Lock, Visual Indicator Trim Both Side, White/Red, SFIC Less Core

  • SKU: 70V6610XG37VSLLUS26D
Dhs. 2,274.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 70-V66-10XG37-VSLL Classroom ...
Quantity
–
+
From Dhs. 2,274.00
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From Dhs. 1,434.00
Total

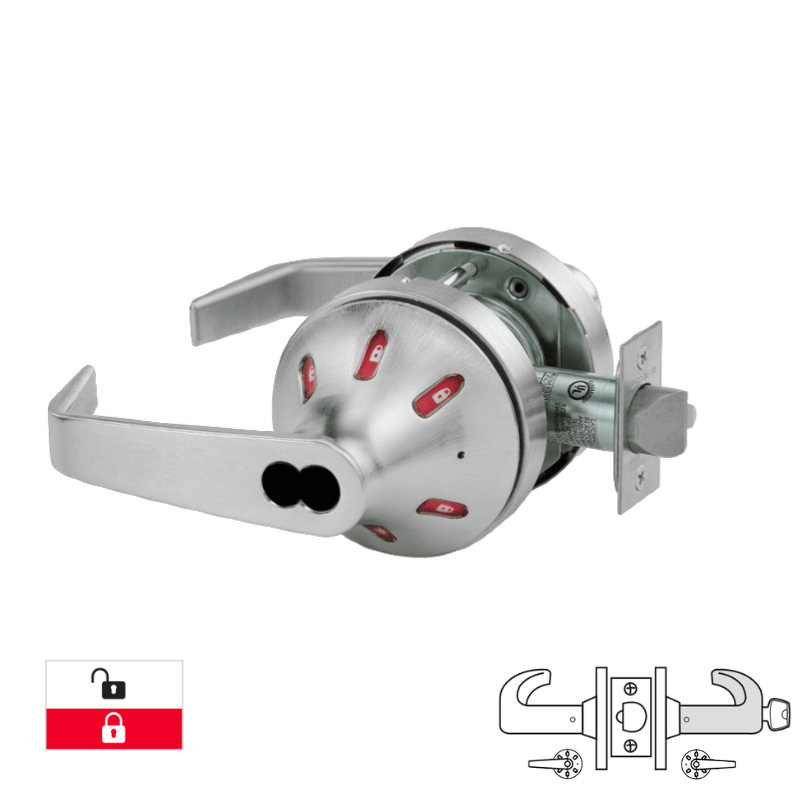

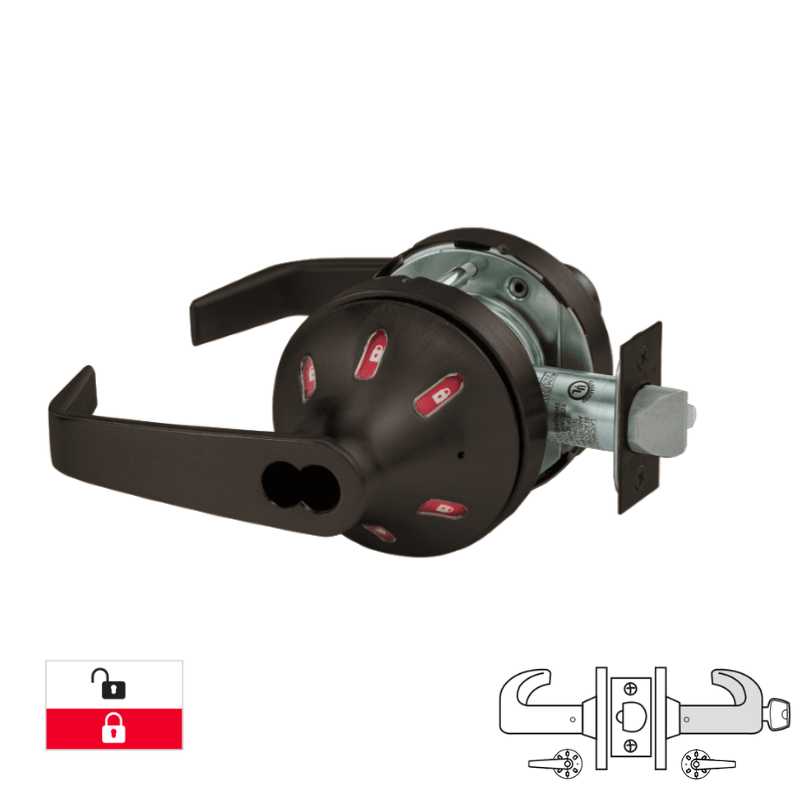

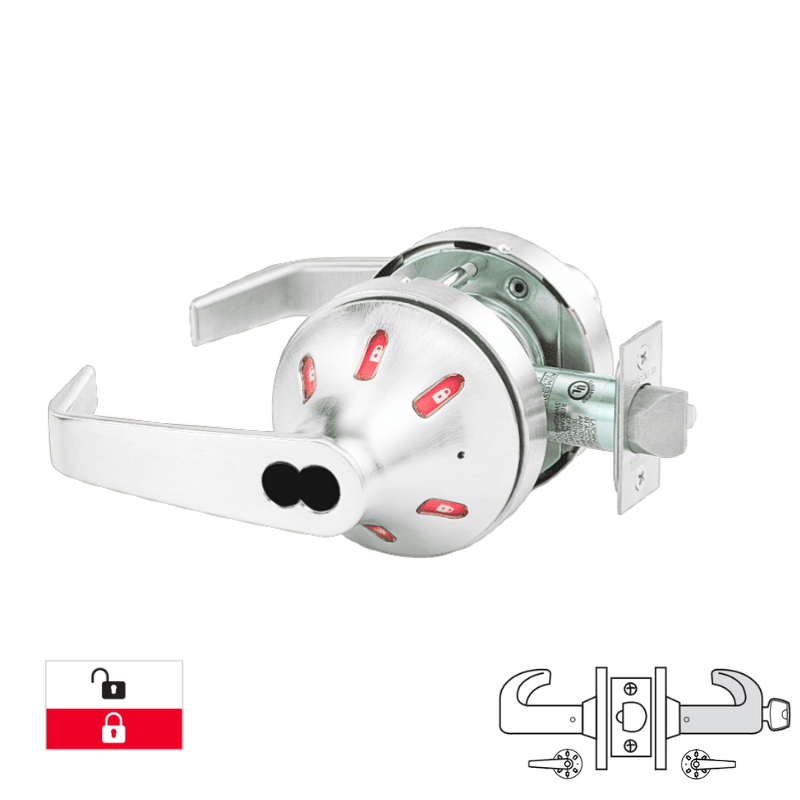

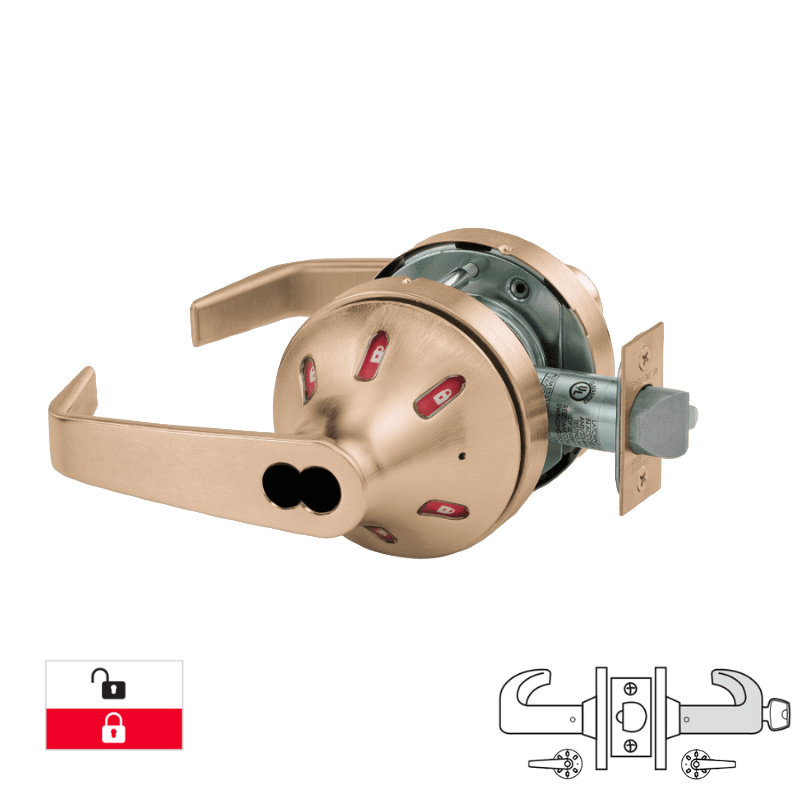

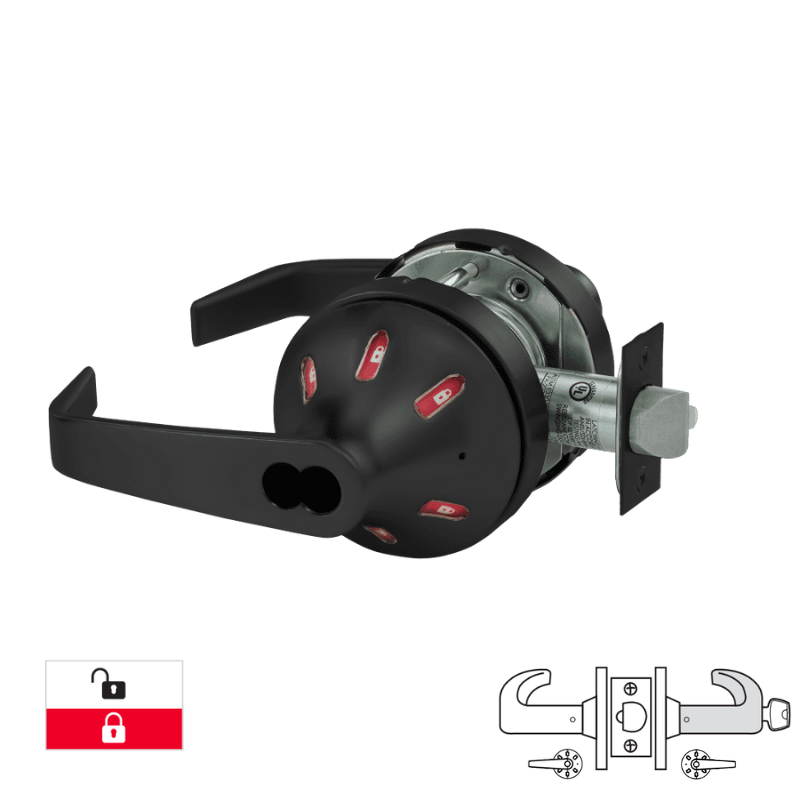

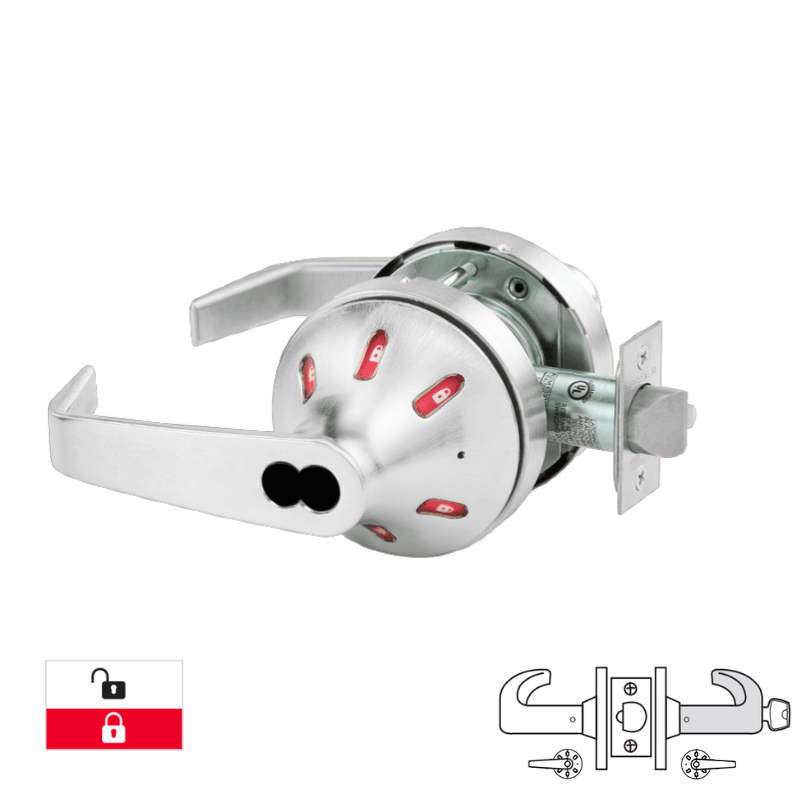

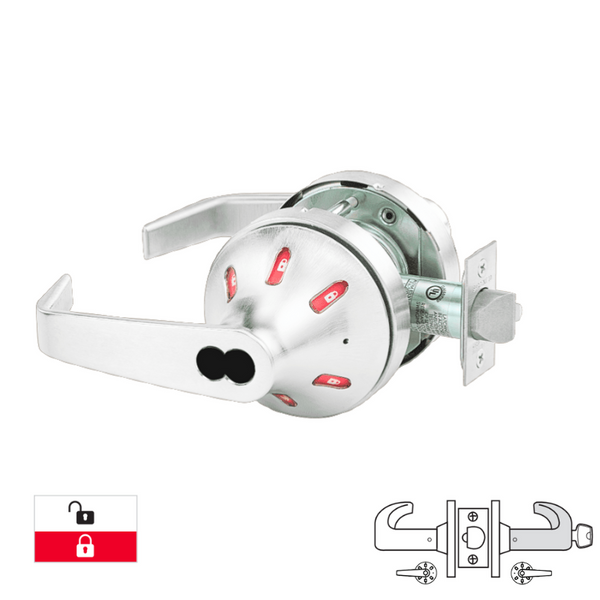

Sargent 70-V66-10XG37-VSLL Classroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Both Side, White/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1

The Sargent 70-V66-10XG37-VSLL is a Grade 1 cylindrical classroom lock featuring a "VSL" rose and an "L" lever design. It includes visual indicator trims on both sides in white and red, with a 2 3/4-inch backset and a 4 7/8-inch strike. This model is SFIC compatible and sold without a core.

Classroom Function:

  • Deadlocking latch
  • Latch by either lever unless outside lever is locked by key
  • Key in outside lever locks or unlocks outside lever and retracts latch
  • Inside lever always operative
  • ANSI/BHMA F84

Double Indicator:

Option Code Outside Inside  Color
V33 Indicator Trim Indicator Trim  Green/Red - Icon
V66 Indicator Trim Indicator Trim  White/Red - Icon
V77 Indicator Trim  Indicator Trim Green/Red - Icon
V88 Indicator Trim  Indicator Trim White/Red - Icon
Manufacturer Sargent
SKU 70-V66-10XG37 VSLL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 37-Classroom
Lever/Knob Design L Lever
Rose/Escutcheon Design VSL Rose
Cylinder Type SFIC Less Core
Handing Non-handed
Door Thickness 1-3/4" to 2"
Bore Hole Diameter 2-1/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock

    Product Cut Sheet
