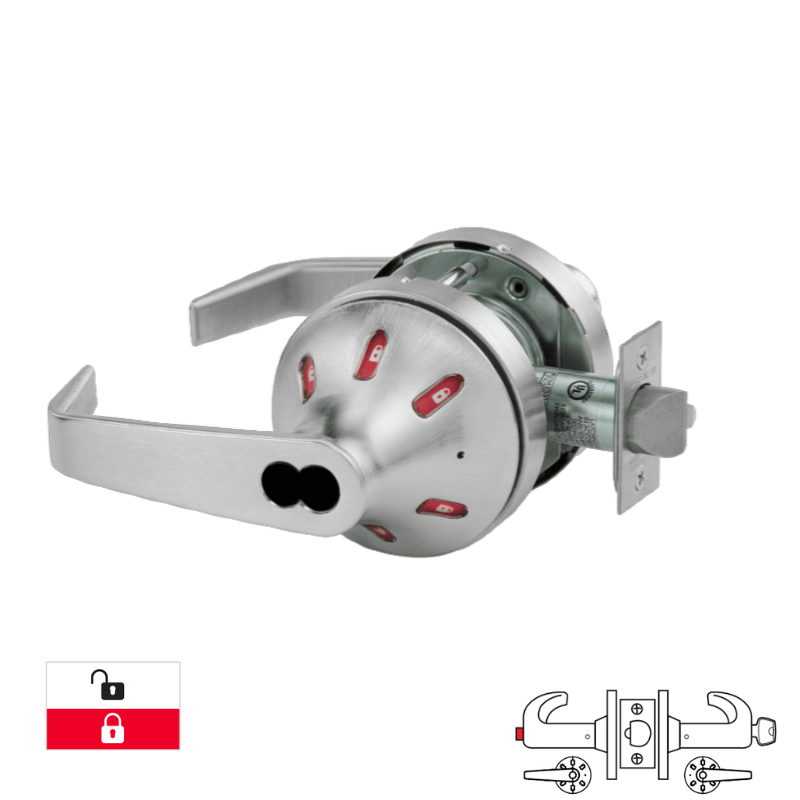

Sargent 70-V66-10XG24-VSLL Entrance or Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Both Sides, White/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1

The Sargent 70-V66-10XG24-VSLL is a Grade 1 entrance or office function cylindrical lock designed for commercial applications, featuring a deadlocking latch operated by either lever and an interior push-button that locks the outside lever until released by key or interior lever rotation, meeting ANSI/BHMA F82A standards. This model includes visual indicator trim on both sides with white/red icon indicators, a VSLL rose with L lever design, and a 2-3/4" backset with a 4-7/8" strike. It is non-handed, accommodates 1-3/4" to 2" thick doors, accepts an SFIC core (less core), and is constructed from brass and bronze for durability. The lock is UL listed to ANSI/BHMA A156.2 Series 7000, fire rated for up to 3 hours, manufactured in the USA, and backed by a 10-year limited warranty.

Entrance or Office Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• Key in outside lever retracts latch when outside lever is locked and releases inside push button
• ANSI/BHMA F82A

Double Indicator:
