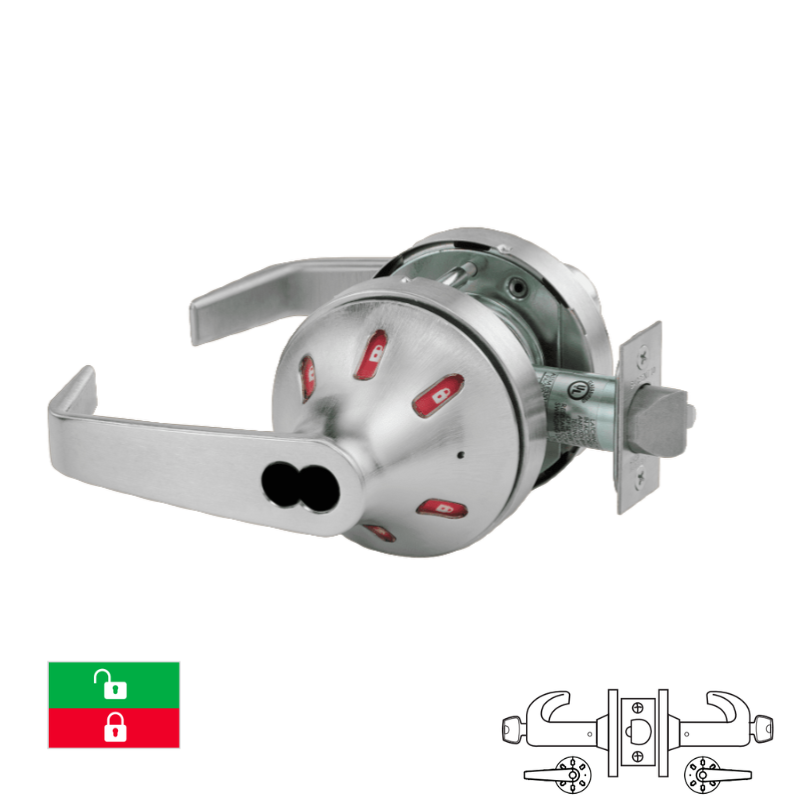

Sargent 70-V33-10XG38-VSLL Classroom Security Intruder Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Both Sides, Green/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1
The Sargent 70-V33-10XG38-VSLL cylindrical lock delivers professional-grade security tailored for classroom environments where quick visual confirmation of door status is essential. The dual-sided indicator trim employs color-coded signals—green indicating unlocked, red indicating locked—allowing staff to verify access control from either side without opening the door. Engineered with a lever mechanism and SFIC interchangeable core compatibility, it accommodates standard 2 3/4" backset and 4 7/8" strike dimensions. The core-less design supports customizable keying strategies while maintaining the reliability and security performance required in institutional settings.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Double Indicator:
| Option Code |
Outside |
Inside |
Color |
| V33 |
Indicator Trim |
Indicator Trim |
Green/Red - Icon |
| V66 |
Indicator Trim |
Indicator Trim |
White/Red - Icon |
| V77 |
Indicator Trim |
Indicator Trim |
Green/Red - No Icon |
| V88 |
Indicator Trim |
Indicator Trim |
White/Red - No Icon |
