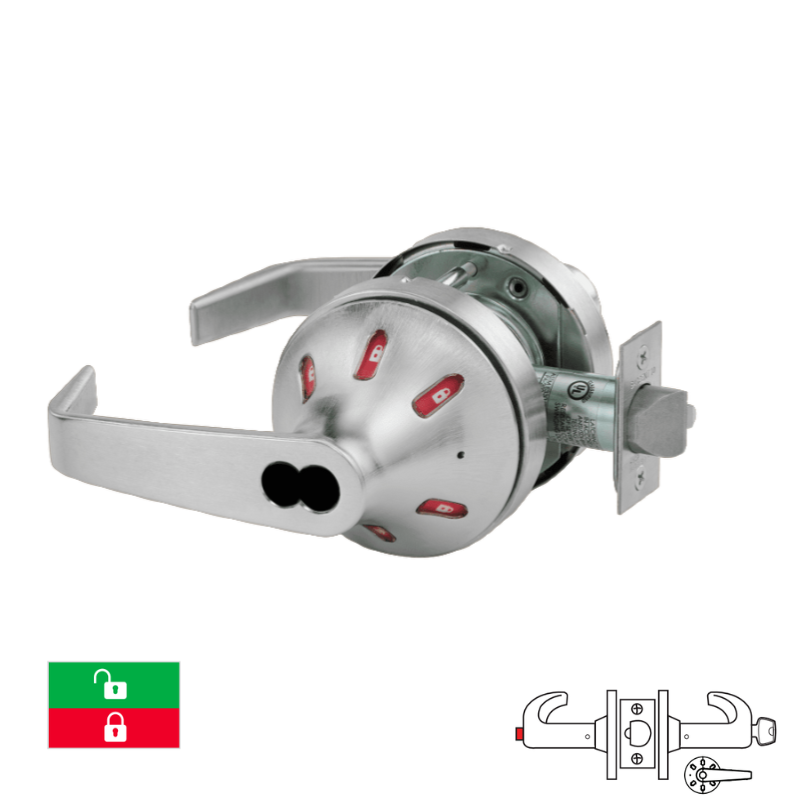

Sargent 70-V30-10XG24-VSLL Entrance or Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1
The Sargent 70-V30-10XG24-VSLL is a Grade 1 cylindrical lock designed for entrance and office applications requiring dependable security with clear visual status indication. Built on Sargent’s 7000 Series platform, it features an L-lever with VSL rose and an exterior-only visual indicator trim that displays green/red icons for quick lock status recognition from the corridor side. The lock supports a standard 2-3/4" backset and 4-7/8" strike, fits doors 1-3/4" to 2" thick, and operates with an ANSI/BHMA F82A entrance or office function. Supplied SFIC-compatible and less core, it allows seamless integration into existing small format interchangeable core key systems, making it well suited for high-traffic commercial environments.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push button in inside lever
- Push button released by key or turning inside lever
- Closing door does not unlock outside lever or release button
- Key in outside lever retracts latch when outside lever is locked and releases inside push button
- ANSI/BHMA F82A
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
