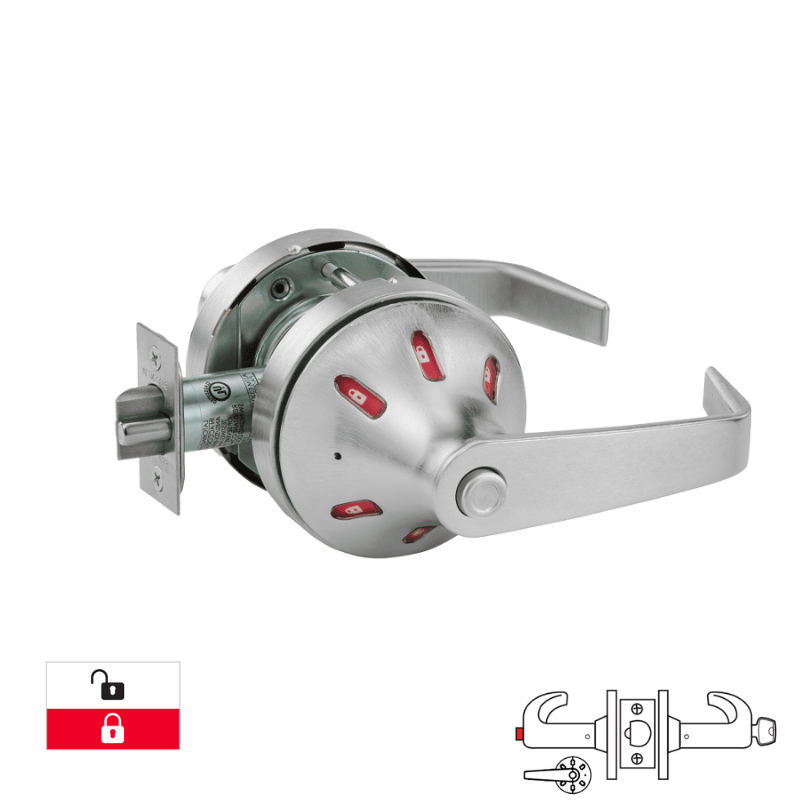

Sargent 70-V06-10XG24-VSLL Entrance or Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1

The Sargent 70-V06-10XG24-VSLL is a heavy-duty Grade 1 cylindrical lock designed for entrance and office applications where durability and clear status indication are required. Built on Sargent’s 7000 Series platform, it features an L-lever with VSL rose and an interior-only visual indicator trim displaying white/red icons for quick lock status recognition. The lock supports a standard 2-3/4" backset and 4-7/8" strike, installs on doors 1-3/4" to 2" thick, and operates with an ANSI/BHMA F82A entrance or office function. Supplied SFIC-compatible and less core, it allows seamless integration into existing small format interchangeable core key systems, making it ideal for high-traffic commercial environments.

Entrance or Office Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• Key in outside lever retracts latch when outside lever is locked and releases inside push button
• ANSI/BHMA F82A

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
