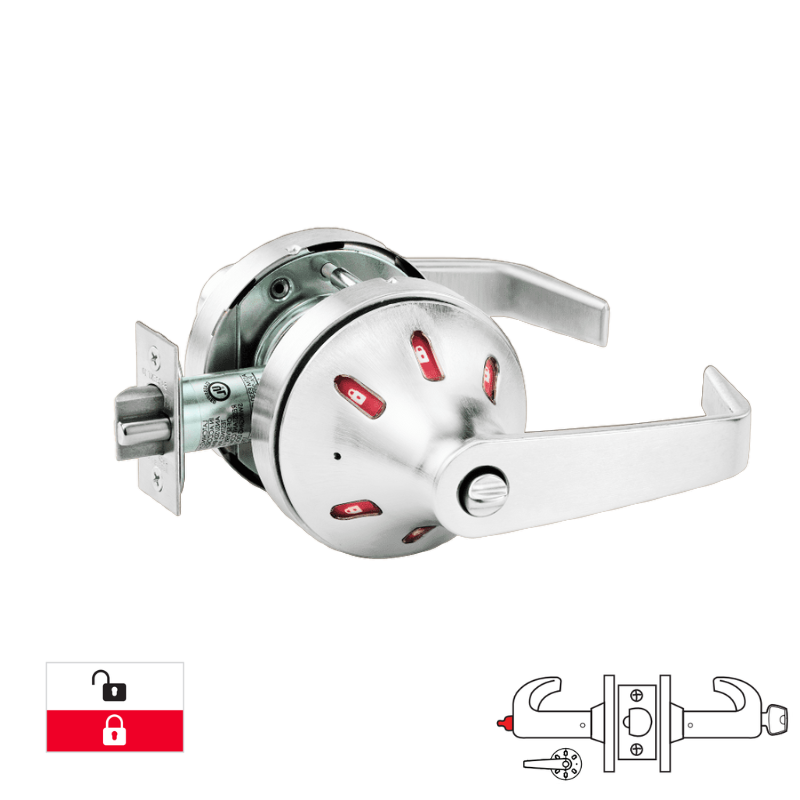

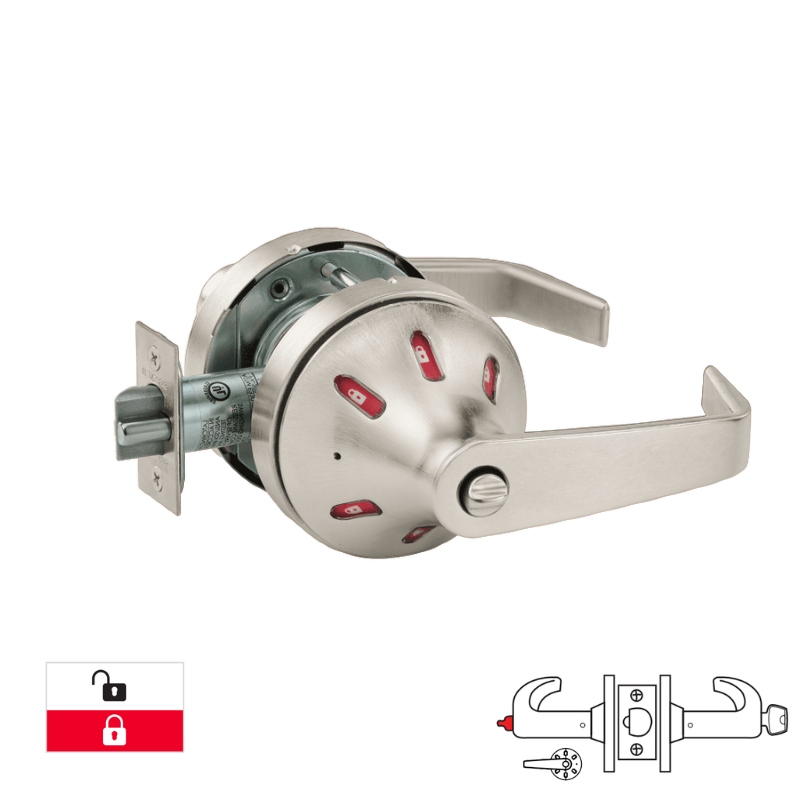

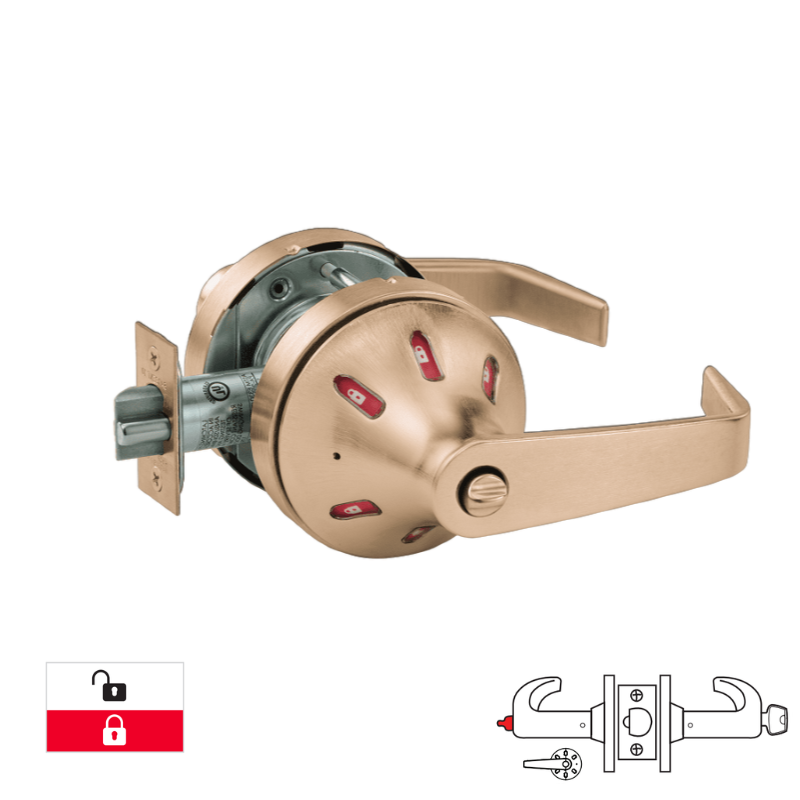

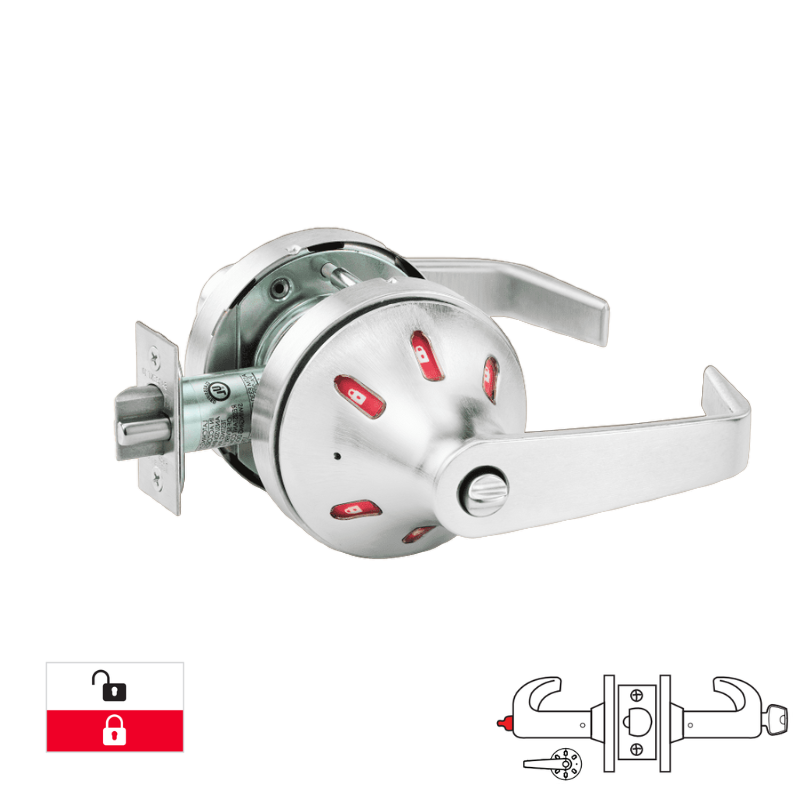

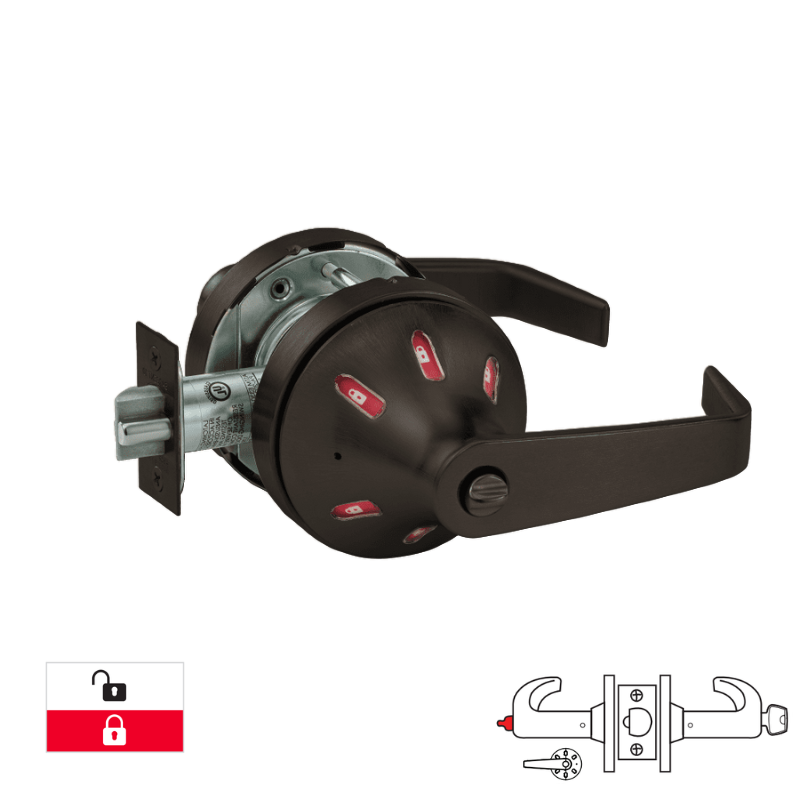

Sargent 70-V06-10XG05-VSLL Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1
Sargent 70-V06-10XG05-VSLL is a Grade 1 office function cylindrical lock featuring a "VSL" rose and an "L" style lever. It includes a white/red visual indicator trim located inside only, with a 2 3/4" backset and a 4 7/8" strike. Designed for SFIC cylinders, it is sold without the core.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push/turn button in inside lever
- Push button released by key outside or lever inside
- Turn button must be released manually
- Key retracts latch when outside lever is locked
- ANSI/BHMA F109
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
