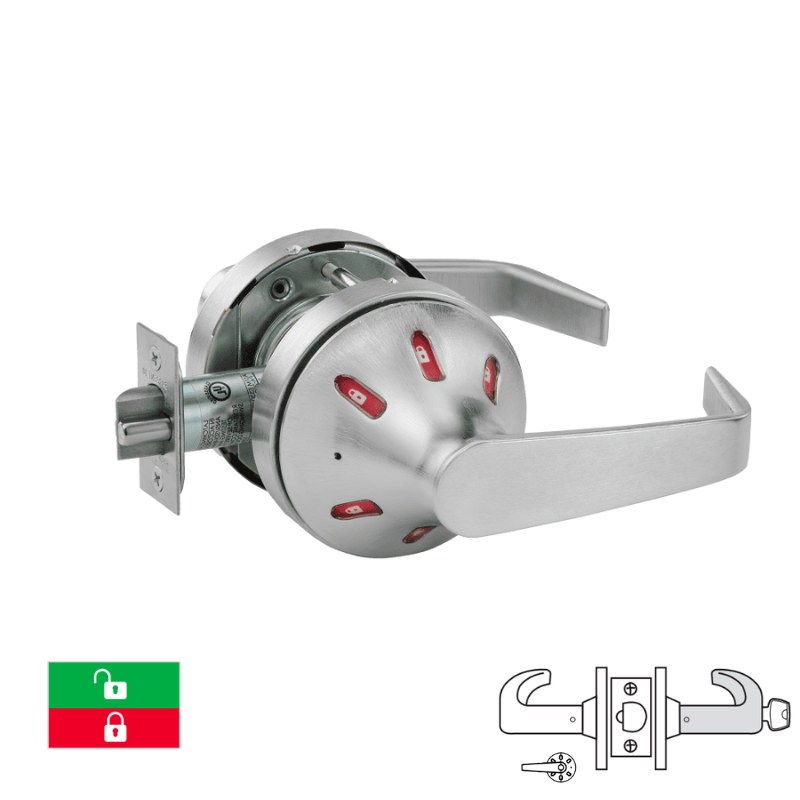

Sargent 70-V03-10XG37-VSLL Classroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1
The Sargent 70-V03-10XG37-VSLL is a Grade 1 cylindrical lock designed for classroom use, featuring a "VSL" rose and "L" lever style. It includes a visual indicator trim visible only from the inside, displaying green and red. The lock has a 2 3/4-inch backset, a 4 7/8-inch strike, uses SFIC, and is sold without a core.
Classroom Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever and retracts latch
- Inside lever always operative
- ANSI/BHMA F84
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
