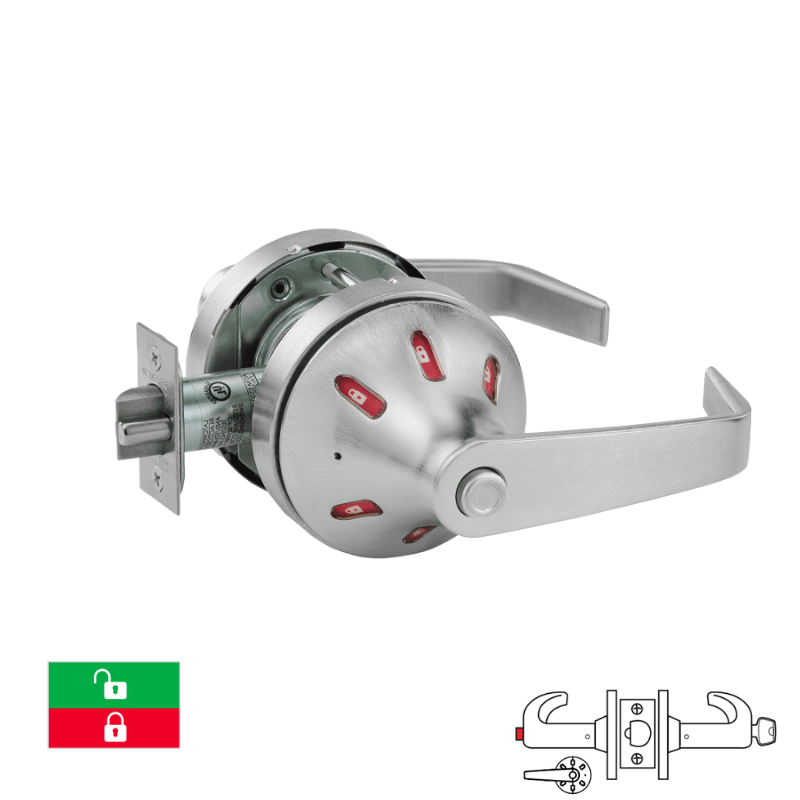

Sargent 70-V03-10XG24-VSLL Entrance or Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1

The Sargent 70-V03-10XG24-VSLL is a Grade 1 entrance or office function cylindrical lock designed for commercial environments that require reliable access control with clear interior status indication. Featuring visual indicator trim on the inside only, it displays green and red icons to communicate room or lock status at a glance. Built with a durable VSL rose and L lever design, this lock installs on standard doors with a 2-3/4" backset and 4-7/8" strike. The deadlocking latch and push-button locking mechanism meet ANSI/BHMA F82A standards, while the SFIC less-core configuration allows seamless integration into existing small-format interchangeable core key systems, making it an ideal solution for high-traffic office and institutional applications.

Entrance or Office Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• Key in outside lever retracts latch when outside lever is locked and releases inside push button
• ANSI/BHMA F82A

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
