All SARGENT Products

Sargent 70-8237-BHW-US32D Behavioral Health Mortise Lock, Classroom Function, BHW Trim, SFIC Less Core, Satin Stainless Steel

  • SKU: 708237BHWUS32DLH
Sargent 70-8237-BHW-US32D
Sargent 70-8237-BHW-US32D Behavioral Health Mortise Lock, Classroom Function, BHW Trim, SFIC Less Core, Satin Stainless Steel
Sargent 70-8237-BHW-US32D
Sargent 70-8237-BHW-US32D Behavioral Health Mortise Lock, Classroom Function, BHW Trim, SFIC Less Core, Satin Stainless Steel
All SARGENT Products

Sargent 70-8237-BHW-US32D Behavioral Health Mortise Lock, Classroom Function, BHW Trim, SFIC Less Core, Satin Stainless Steel

  • SKU: 708237BHWUS32DLH
Dhs. 6,241.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Handing: LH - Left Hand

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 70-8237-BHW-US32D Behavioral ...
Quantity
–
+
Dhs. 6,241.00
Sargent Mortise Cylinders - Multiple ...
Quantity
–
+
From Dhs. 438.00
KSP 206-A-KD SFIC Combinated Core - A...
Quantity
–
+
Dhs. 194.00
Total

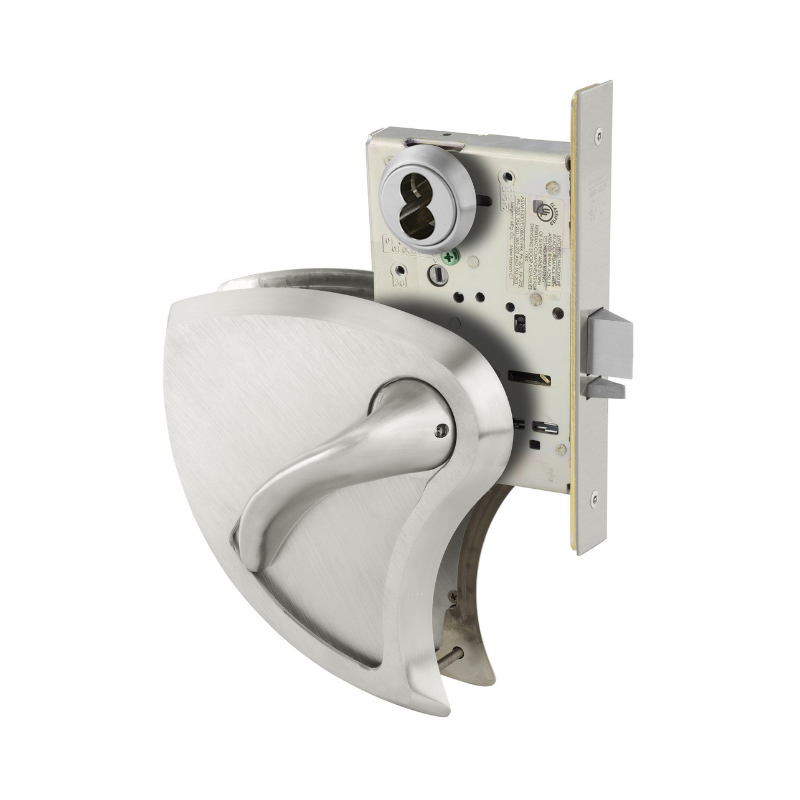

Sargent 70-8237-BHW-US32D Behavioral Health Classroom Function Mortise Lock, Key Retracts Latch, BHW Trim, SFIC Prep, Less Core, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 70-8237-BHW-US32D Behavioral Health Mortise Lock is designed for classroom use, featuring a latch that retracts with the key. It comes with BHW trim, is prepared for SFIC installation without a core, and meets Grade 1 standards. This lock is field reversible and finished in satin stainless steel (630).

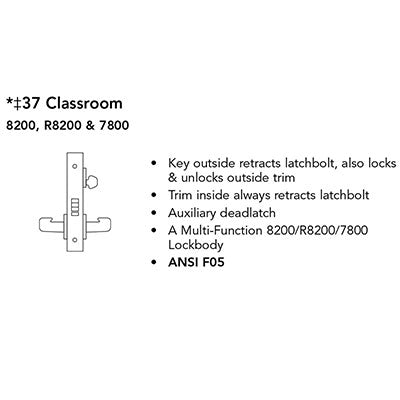

  • Classroom Function:
    • Key outside retracts latchbolt, also locks & unlocks outside trim
    • Trim inside always retracts latchbolt
    • Auxiliary deadlatch
  • Uses standard mortise prep
  • SFIC Less Core
  • ANSI/BHMA Grade 1
  • Tapered surfaces on all components
  • Handed
  • ADA Compliant
  • 6 Lobe head security screws (Torx® type)
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Ligature Resistant
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 37 Classroom Function
Lever/Knob Design BHW Lever
Cylinder Type SFIC Less Core
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock
Product Cut Sheet

Cylinder Mortise Handing Chart
