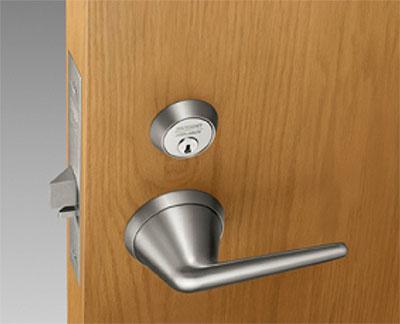

Sargent 70-8237-BHL-US32D has a 2-3/4" backset, for doors 1-3/4" to 1-7/8" thickness, and has BHL trim which can be used on virtually any openings in healthcare applications.
8200 Series Overview
The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.
Features
- ANSI/BHMA Grade 1 certified for cycle and strength requirements
- UL-cUL is listed for 3-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim), and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
Manufacturer | Sargent |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
Application | Ligature Resistant |
Base Material | Stainless Steel |
BAA Qualified | Yes |
Limited Warranty | 10 Years |
Fire Rated | 2 Hours {B} |
Function | Classroom |
ANSI Function |
F05 - Classroom |
Lever/Knob Design |
BHL Lever |
Cylinder Type | SFIC Less Core |
Handing | Field Reversible |
Door Thickness | 1-3/4" |
Std. Latch Type | Dead Latch (Guarded) |
Std. Latch Backset Dim | 2-3/4" |
Lock Face Size | 8" x 1-1/4" |
Bolt Projection | 3/4" Latch |
Std. Strike Number | 82-0110 |
Std. Strike Type | ASA |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Screws | Combination |
Product Type | Mortise Lock |
