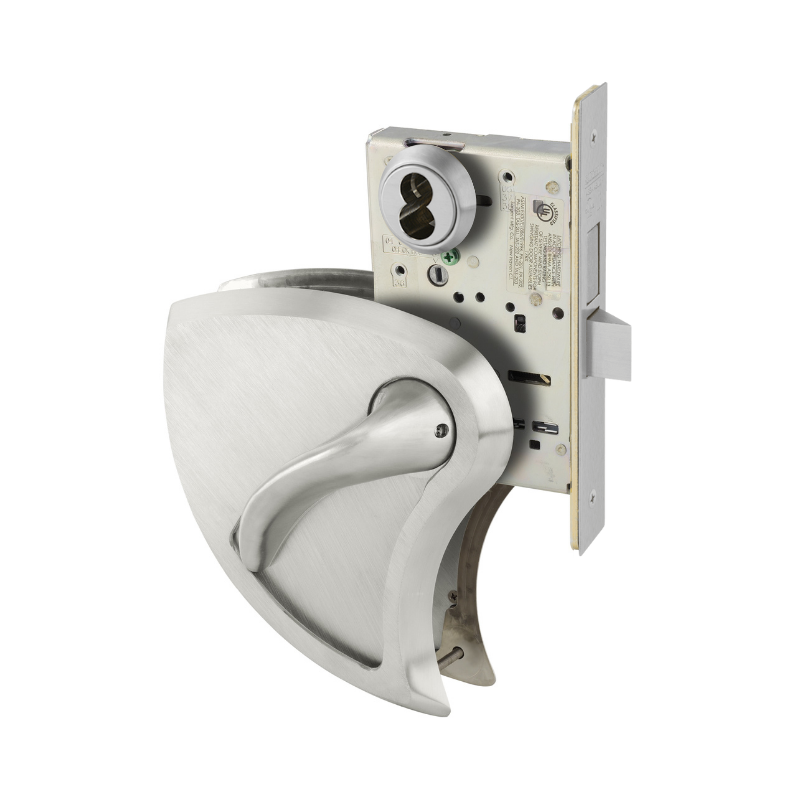

Sargent 70-8225-BHW-US32D Behavioral Health Dormitory or Exit Function Mortise Lock, BHW Trim, SFIC, Less Core, Grade 1, Field Reversible, 630 Satin Stainless Steel

Sargent 70-8225-BHW-US32D Behavioral Health Mortise Lock suited for dormitory or exit functions features BHW trim and is prepared for SFIC installation without a core. This Grade 1 lock is field reversible and finished in 630 satin stainless steel.

• Dormitory or Exit Function:
  • Key outside or thumbturn inside retracts and projects deadbolt

  • Trim from either side retracts latchbolt, when the deadbolt is in the retracted position

  • Trim outside is locked, when the deadbolt is projected

  • When deadbolt is projected, Trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
• Uses standard mortise prep

• SFIC Less Core
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
