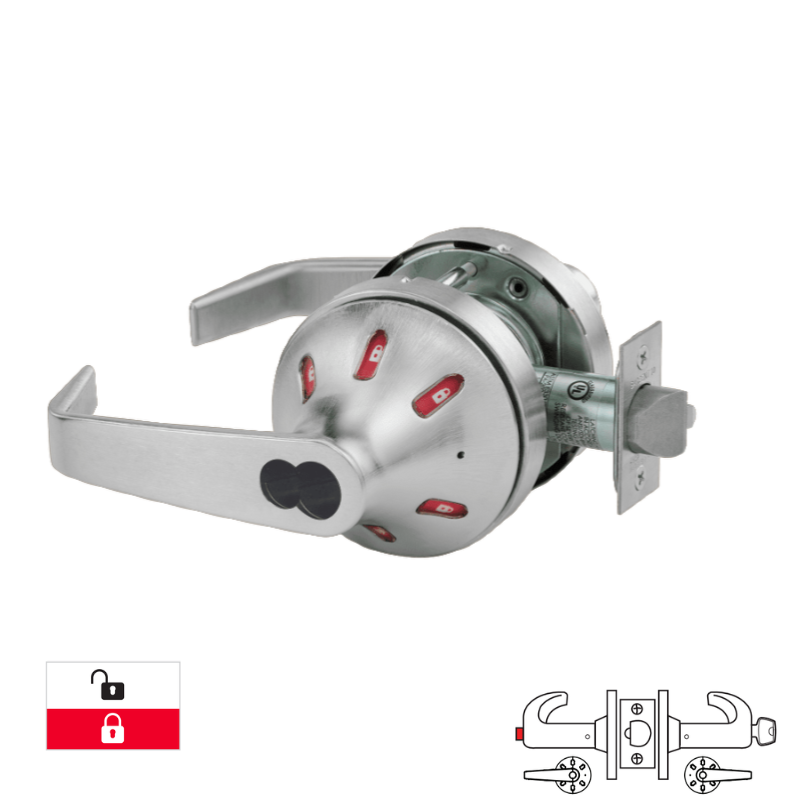

Sargent 60-V66-10XG44-VSLL Service Station Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Both Sides, White/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1

The Sargent 60-V66-10XG44-VSLL Service Station Cylindrical Indicator Lock is a Grade 1 commercial lock designed for controlled access while providing clear visual lock status on both sides of the door. Featuring Service Station Function 44, the deadlocking latch operates by either lever unless the outside lever is locked by the inside push button, with key override and a coin-slot mechanism to fix or release the button as needed. The V66 double visual indicator trim displays white/red indicators on both the inside and outside, all housed in a VSLL rose with L-style lever. Built for durability and code compliance, it supports a 2-3/4″ backset, 4-7/8″ strike, LFIC less core, non-handed installation, and is UL listed and fire rated up to 3 hours, making it ideal for high-traffic commercial and institutional environments.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F82A

Double Indicator:
