Sargent 60-V66-10XG37-VSLL Classroom Function Cylindrical Lock, Visual Indicator Trim Both Side, White/Red, LFIC Less Core

  • SKU: 60V6610XG37VSLLUS26D
Dhs. 2,274.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 60-V66-10XG37-VSLL Classroom ...
Quantity
–
+
From Dhs. 2,274.00
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From Dhs. 1,434.00
Total

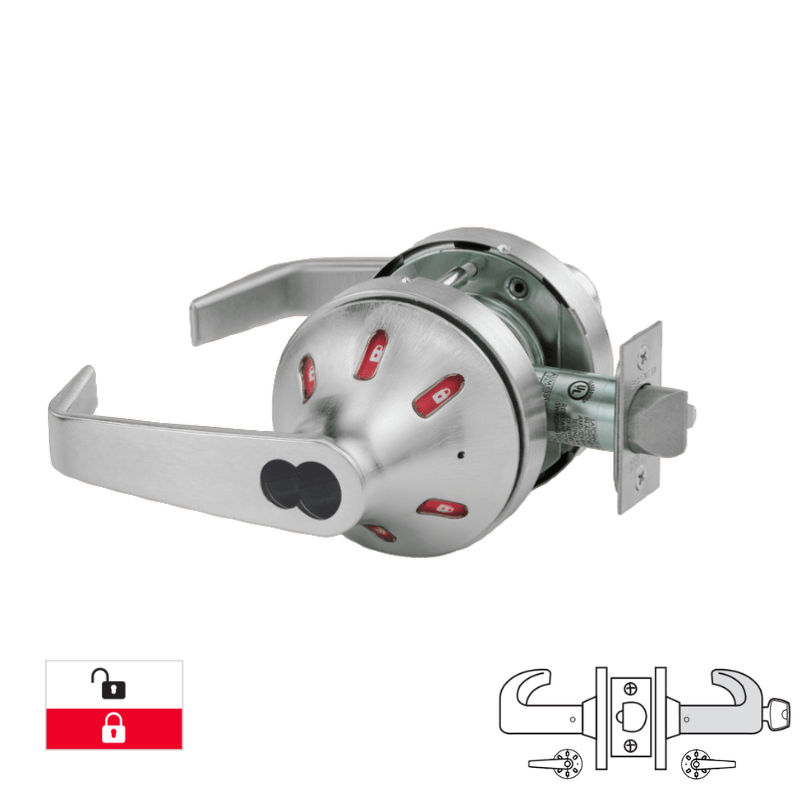

Sargent 60-V66-10XG37-VSLL Classroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Both Side, White/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1

Sargent 60-V66-10XG37-VSLL Classroom Function Cylindrical Lock features a "VSL" rose and an "L" style lever. It includes a visual indicator on both sides in white and red, a 2 3/4-inch backset, and a 4 7/8-inch strike plate. This Grade 1 lock is equipped with an LFIC and is sold without the core.

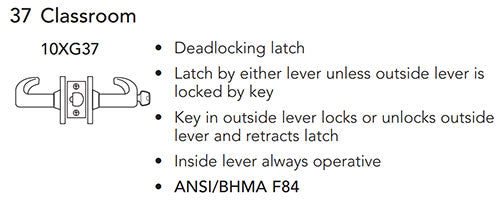

Classroom Function:

  • Deadlocking latch
  • Latch by either lever unless outside lever is locked by key
  • Key in outside lever locks or unlocks outside lever and retracts latch
  • Inside lever aleays operative
  • ANSI/BHMA F84

Double Indicator:

Option Code Outside Inside  Color
V33 Indicator Trim Indicator Trim  Green/Red - Icon
V66 Indicator Trim Indicator Trim  White/Red - Icon
V77 Indicator Trim  Indicator Trim Green/Red - Icon
V88 Indicator Trim  Indicator Trim White/Red - Icon
Manufacturer Sargent
SKU 60-V66-10XG37 VSLL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 37-Classroom
Lever/Knob Design L Lever
Rose/Escutcheon Design VSL Rose
Cylinder Type LFIC Less Core
Handing Non-handed
Door Thickness 1-3/4" to 2"
Bore Hole Diameter 2-1/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
