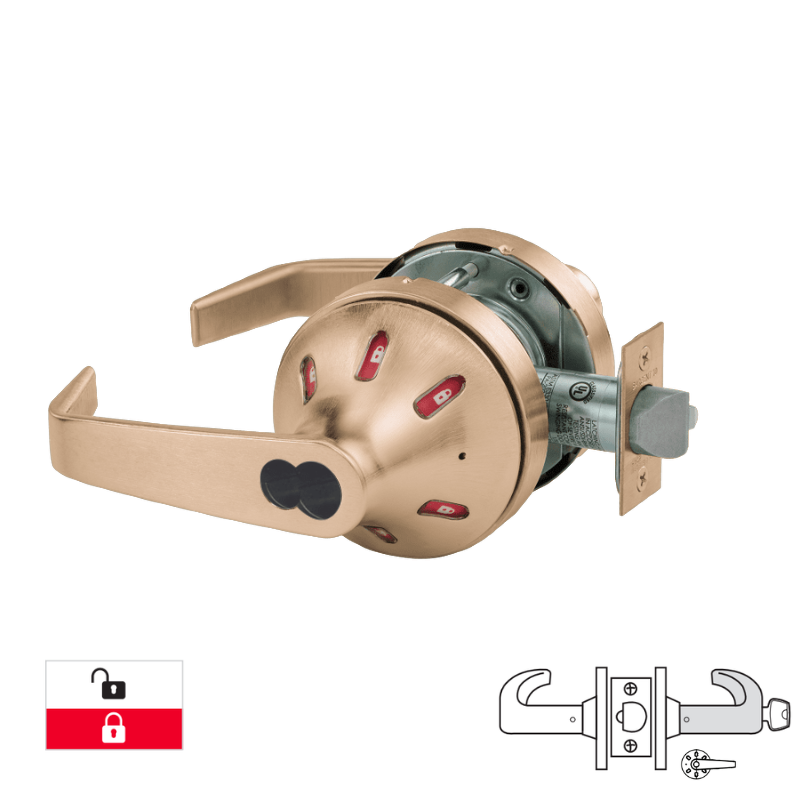

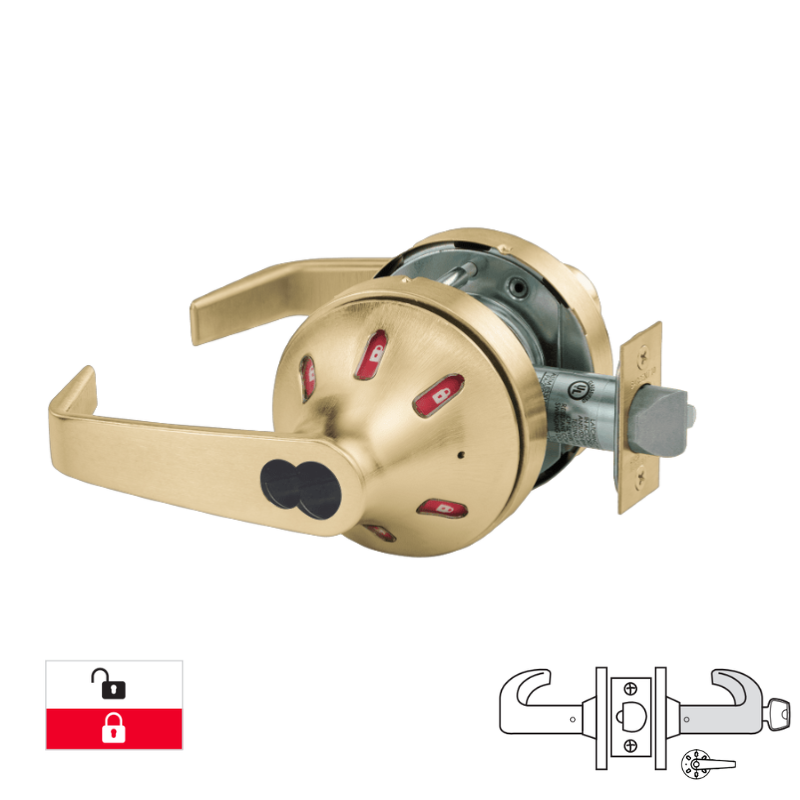

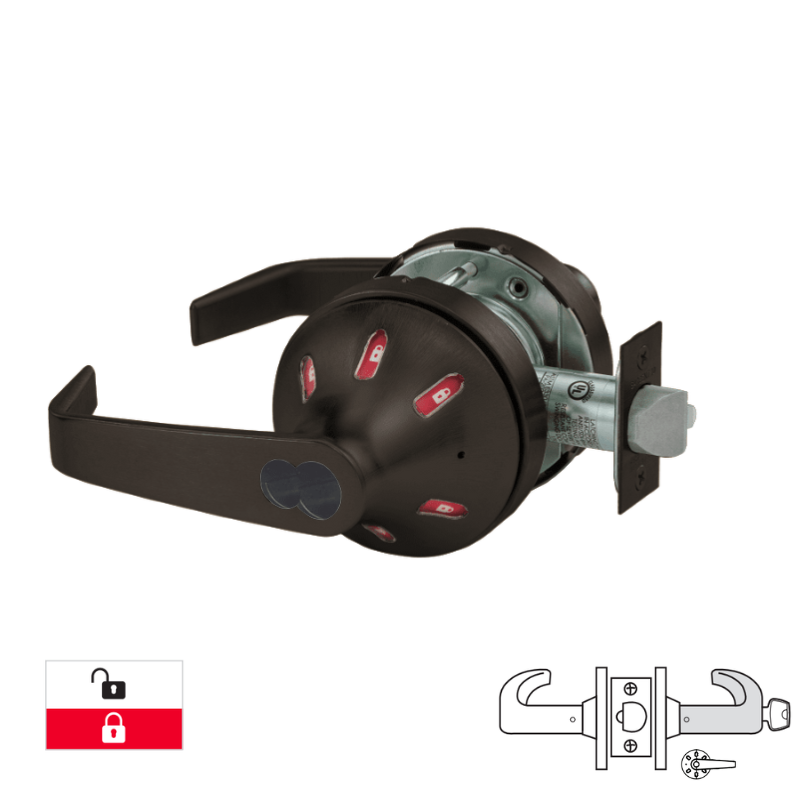

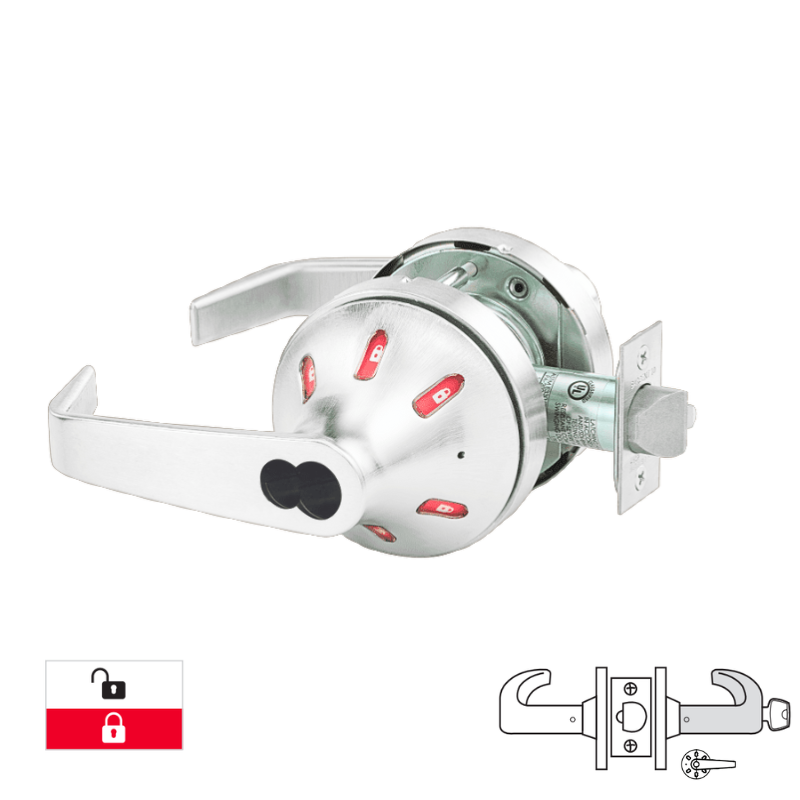

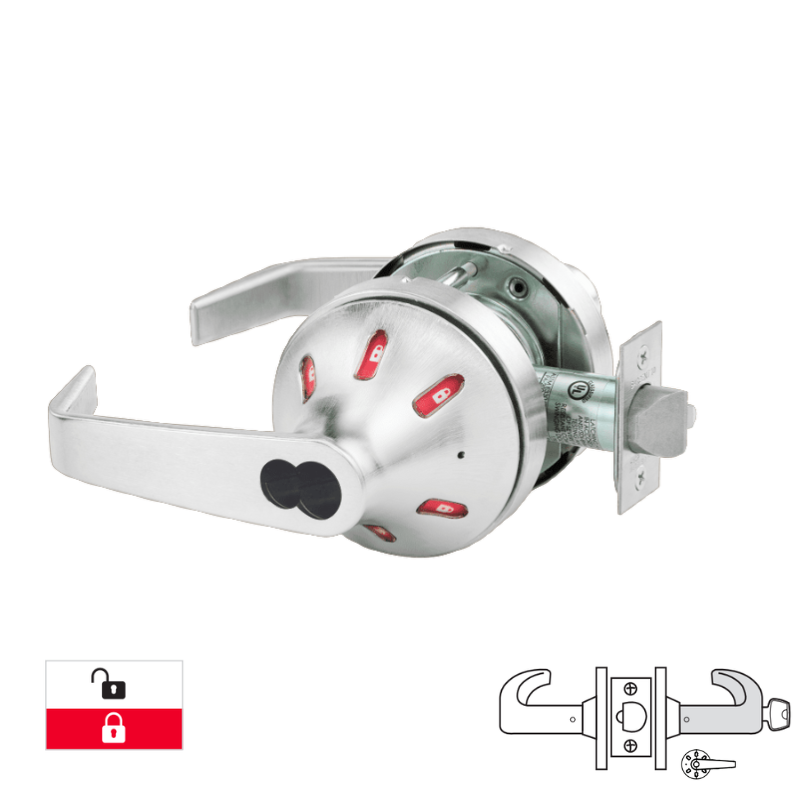

Sargent 60-V60-10XG37-VSLL Classroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1
Sargent 60-V06-10XG37-VSLL Classroom Function Cylindrical Lock features a "VSL" rose and an "L" lever design. It includes a visual indicator trim visible from the inside only, presented in white and red. This lock has a 2 3/4-inch backset, a 4 7/8-inch strike, and comes as less core (LFIC). Rated Grade 1 for durability and security.
Classroom Function:
Deadlocking latch
Latch by either lever unless outside lever is locked by key
Key in outside lever locks or unlocks outside lever and retracts latch
Inside lever always operative
ANSI/BHMA F84
Single Indicator:
Option Code
Outside
Inside
Color
V30
Indicator Trim
Standard Trim
Green/Red - Icon
V60
Indicator Trim
Standard Trim
White/Red - Icon
V03
Standard Trim
Indicator Trim
Green/Red - Icon
V06
Standard Trim
Indicator Trim
White/Red - Icon
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
Product Specs
Manufacturer
Sargent
SKU
60-V60-10XG37 VSLL
Grade
Grade 1
Installation
Commercial
Origin
United States
Unit of Measure
Each
Base Material
Brass, Bronze
UL Listing Type
ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
