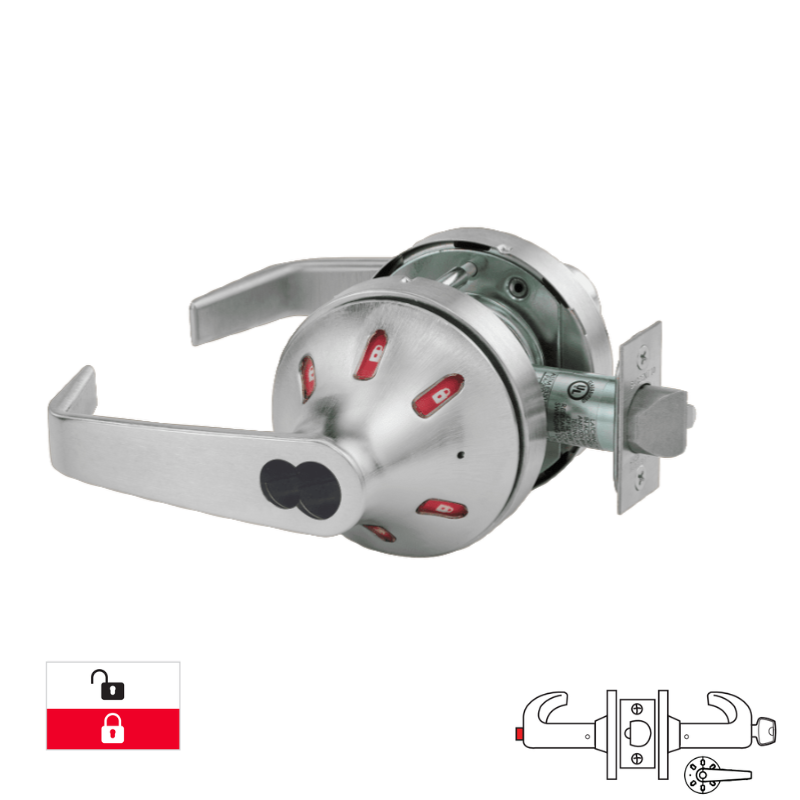

Sargent 60-V60-10XG24-VSLL Entrance or Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1

The Sargent 60-V60-10XG24-VSLL is a Grade 1 entrance or office function cylindrical lock designed for commercial applications requiring clear exterior lock status indication. Featuring visual indicator trim on the outside only, this model displays white/red icon indicators to show locked and unlocked status at a glance. Constructed with Sargent’s durable VSL rose and L-lever design, it installs into standard commercial door preparations with a 2-3/4" backset and 4-7/8" strike. The Entrance/Office function allows the outside lever to be locked via an interior push button while maintaining key override capability. LFIC compatible and supplied less core, this lock integrates seamlessly into interchangeable core master key systems and is engineered for reliable performance in high-traffic commercial environments.

Entrance or Office Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• Key in outside lever retracts latch when outside lever is locked and releases inside push button
• ANSI/BHMA F82A

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
