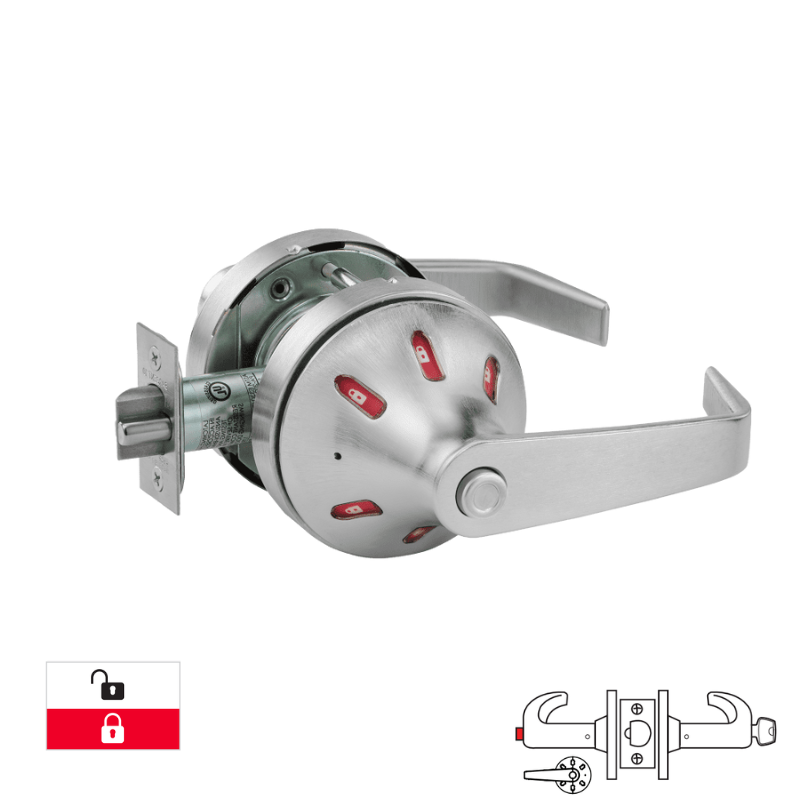

Sargent 60-V06-10XG44-VSLL Service Station Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1

The Sargent 60-V06-10XG44-VSLL Service Station Cylindrical Indicator Lock is a Grade 1 commercial lock engineered for secure, controlled access in service and utility areas while providing clear visual lock status. Featuring Service Station Function 44, the deadlocking latch operates by either lever unless the outside lever is locked by the inside push button, with key override and a coin-slot mechanism to fix or release the button as required. The V06 visual indicator trim displays a white/red indicator on the inside only, paired with standard LL trim on the outside, all housed in a VSLL rose with L-style lever. Designed for durability and compliance, it supports a 2-3/4″ backset, 4-7/8″ strike, LFIC less core, non-handed installation, and is UL listed and fire rated up to 3 hours, making it well suited for high-traffic commercial applications.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F82A

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
