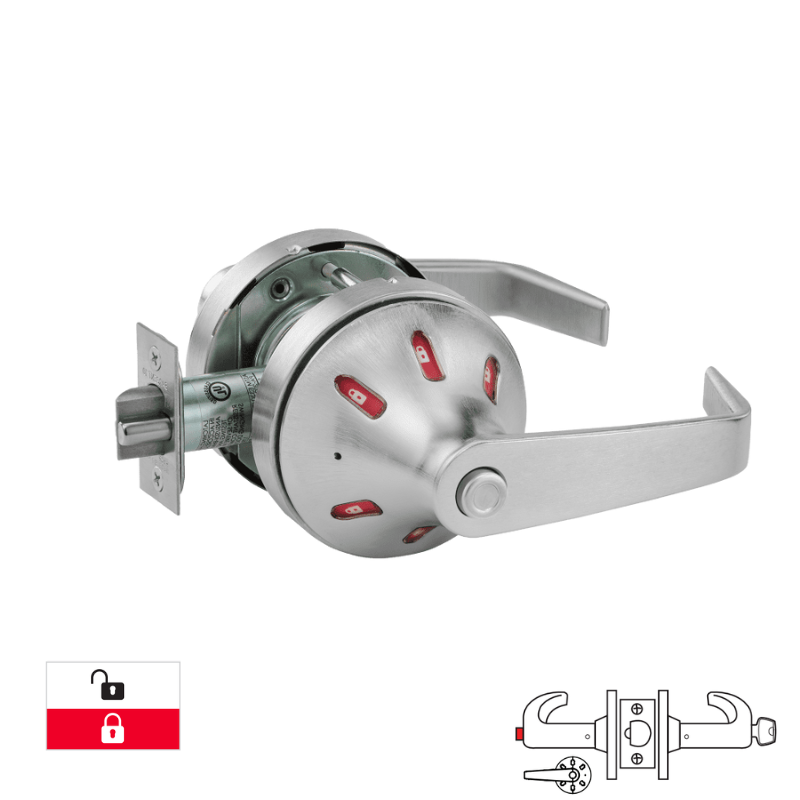

Sargent 60-V06-10XG24-VSLL Entrance or Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1
The Sargent 60-V06-10XG24-VSLL cylindrical lock delivers institutional-grade security for entrance and office door applications. The interior-facing visual indicator trim uses white and red icons to provide clear locked and unlocked status visibility. Featuring a lever-style VSL rose and engineered for a 2 3/4" backset with a 4 7/8" strike, the lock installs into standard commercial door preparations. LFIC-compatible and supplied less core, it supports seamless integration with enterprise key control and master key systems.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push button in inside lever
- Push button released by key or turning inside lever
- Closing door does not unlock outside lever or release button
- Key in outside lever retracts latch when outside lever is locked and releases inside push button
- ANSI/BHMA F82A
Single Indicator:
| Option Code |
Outside |
Inside |
 Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
