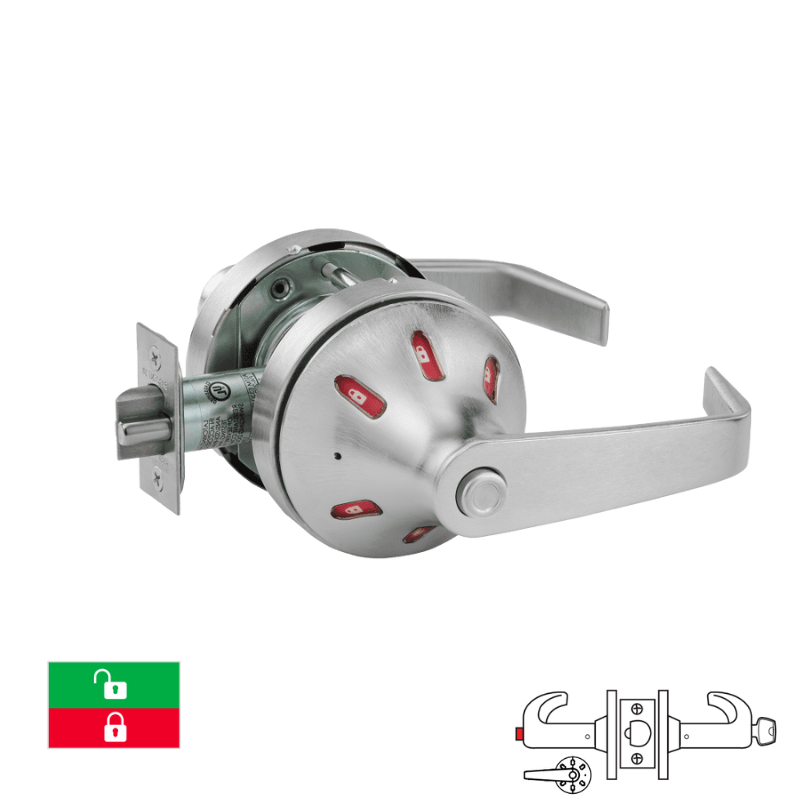

Sargent 60-V03-10XG44-VSLL Service Station Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1

The Sargent 60-V03-10XG44-VSLL Service Station Cylindrical Indicator Lock is a Grade 1 commercial lock designed for controlled access and clear visual status indication in service and utility areas. It features a Service Station (Function 44) deadlocking latch that operates by either lever unless the outside lever is locked by the push button on the inside, with key override capability and a coin-slot function to fix or release the button as needed. The V03 visual indicator trim provides a green/red occupancy indicator on the inside only, paired with standard LL trim on the outside, all housed in a VSLL rose with L-style lever. Built for durability and code compliance, it supports 2-3/4″ backset, 4-7/8″ strike, LFIC less core, non-handed installation, and is UL listed, fire rated up to 3 hours, making it ideal for high-traffic commercial environments.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F82A

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
