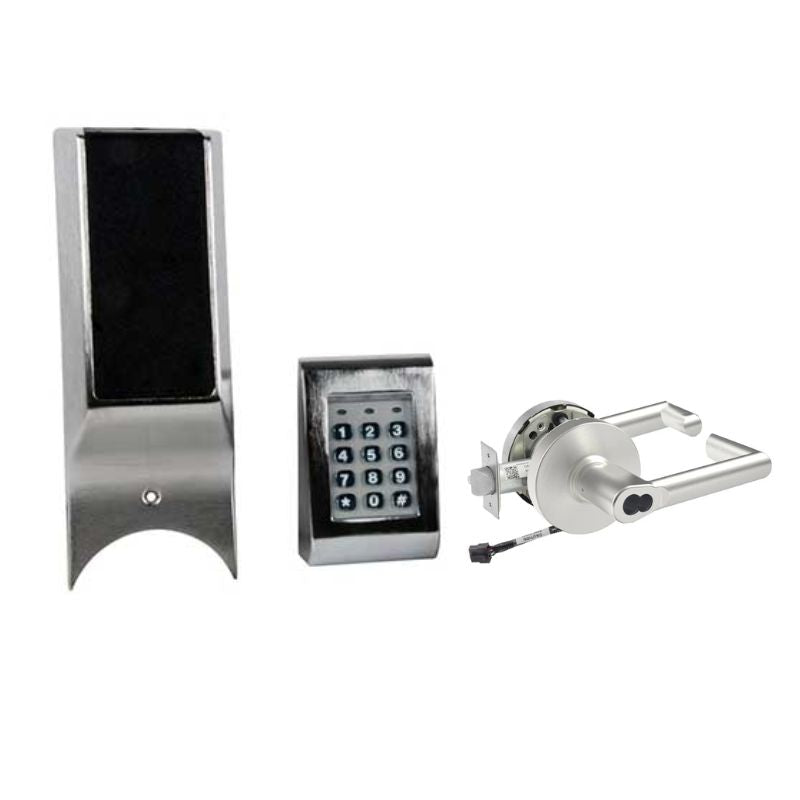

Sargent 60-KP-10XG77-LMW Cylindrical Keypad Lock, With Key Override, L Rose, MW-Lever, LFIC "60" Large Format Interchangeable Prep, Furnished Less Core, Non Handed

This Sargent 60-KP-10XG77-LMW Cylindrical Keypad Lock features a key override function and comes with a non-handed L rose and MW lever. The "60" large format interchangeable prep is furnished less core.

Sargent Keypad (KP) 10X Line Cylindrical Locks Features

The Keypad Operated Products 10X Line Cylindrical lock is available with a wide selection of lever designs and hardware finishes. Its unique design provides uniformity when used with other SARGENT locks at a facility. The KP products offer economical, standalone access control solutions.

• Certified ANSI A156.2 Series 4000 - Grade 1
• UL listed to U.S.A. and Canadian safety standards Listed for 3-hour doors (double doors require 41 - option)
• Motor driven 10X Line cylindrical lock
• Latchbolt brass, 1/2" (13mm) throw; UL Listed 3/4" (19mm) throw (41- option) available
•  2-3/4" (70mm) backset standard. Consult the factory for other backsets available
• Non-handed
• Heavy-duty lever spring return rose assembly
• Steel spacer bushing and extended one-piece bearing sleeves
• Steel mounting studs
• 3 through-bolt position combinations
• Key override standard
• Includes code to activate a horn when keypad buttons are pushed
• Not available with 82-, F1-82, 83-, F1-83, or 84- options
• For 1-3/4" (44mm) thick doors standard
