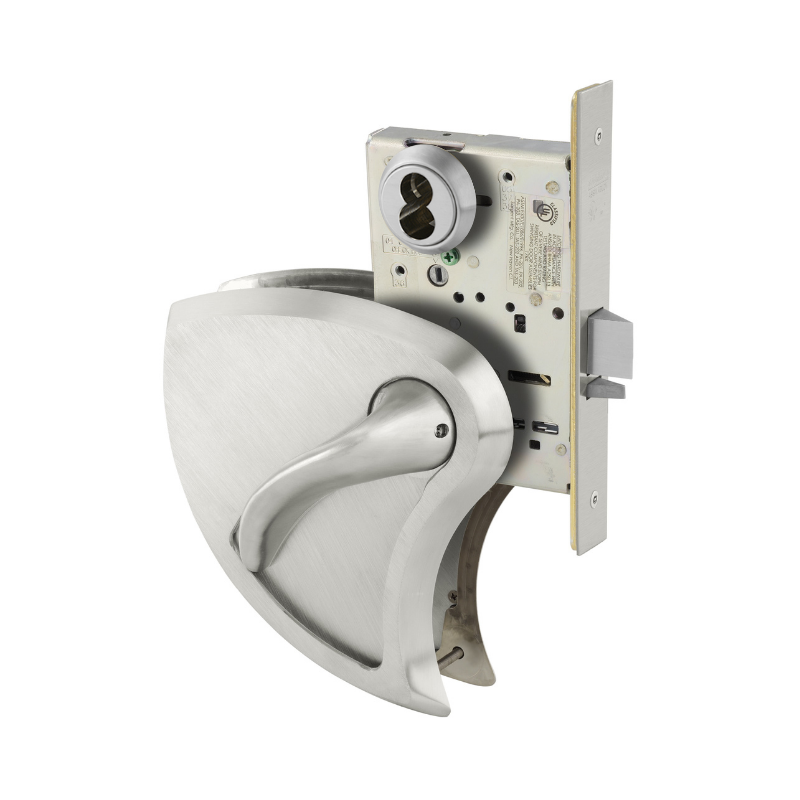

Sargent 60-8237-BHW-US32D Behavioral Health Classroom Function Mortise Lock, Key Retracts Latch, BHW Trim, LFIC Prep, Less Core, Grade 1, Field Reversible, 630 Satin Stainless Steel

This Sargent 60-8237-BHW-US32D Behavioral Health Mortise Lock features a classroom function with key latch retraction, BHW trim, and is prepared for LFIC installation without core. It meets Grade 1 standards, offers field reversibility, and comes in durable 630 satin stainless steel.

  • Classroom Function:
    • Key outside retracts latchbolt, also locks & unlocks outside trim
    • Trim inside always retracts latchbolt
    • Auxiliary deadlatch
  • Uses standard mortise prep
  • LFIC Less Core
  • ANSI/BHMA Grade 1
  • Tapered surfaces on all components
  • Handed
  • ADA Compliant
  • 6 Lobe head security screws (Torx® type)
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Ligature Resistant
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 37 Classroom Exit Function
Lever/Knob Design BHW Lever
Cylinder Type LFIC Less Core
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock
