Sargent 60-8204-LNP-26D Storeroom or Closet Function Mortise Lock, LFIC Less Core, LN Rose, P Lever, Satin Chrome

  • SKU: 608204LNP26D

Sargent 60-8204-LNP-26D Storeroom or Closet Function Mortise Lock, LFIC Less Core, LN Rose, P Lever, Satin Chrome

  • SKU: 608204LNP26D
Sale priceDhs. 2,696.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 60-8204-LNP-26D Storeroom or ...
Quantity
+
Sale priceDhs. 2,696.00
Sargent 6300 LA LFIC Core, LA Keyway,...
Quantity
+
Sale priceDhs. 368.00
Total

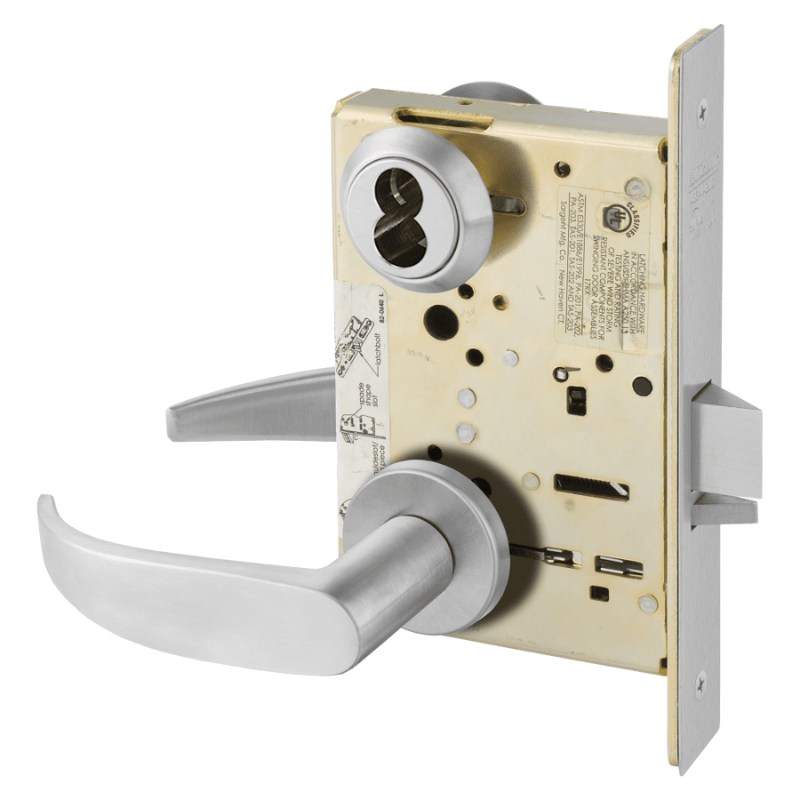

The Sargent 60-8204-LNP-26D Mortise Lock comes LFIC Less Core with a Storeroom or Closet Function (Key Retracts Latch), an LN Rose, and a P lever in a Satin Chrome Finish.

8200 Series Mortise Lock

The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.

With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.

Manufacturer Sargent
Grade Grade 1
Origin USA
Unit of Measure Each
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}



Function 04 Storeroom Function
ANSI Function F07 - Storeroom/Exit
Lever/Knob Design P - Lever
Rose/Escutcheon Design LN - Rose
Cylinder Type LFIC
Handing Field Reversible
Door Thickness 1-3/4 In.
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 8 In. x 1-1/4 In.
Bolt Projection 3/4 In. Latch
Std. Strike Number 82-0110
Std. Strike Type ASA Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Mortise Lock

Cylinder Mortise Handing Chart
