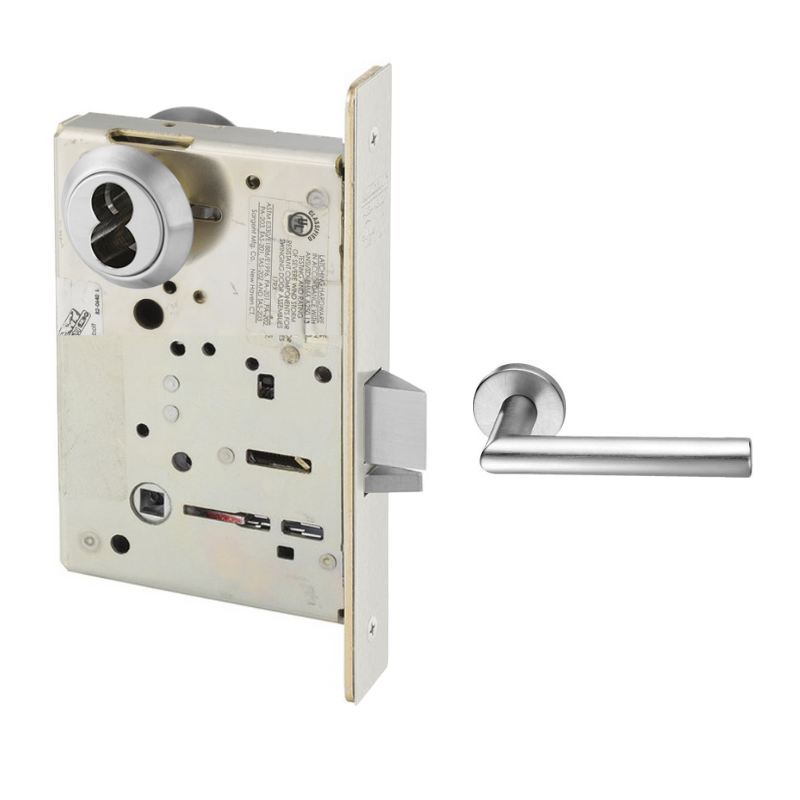

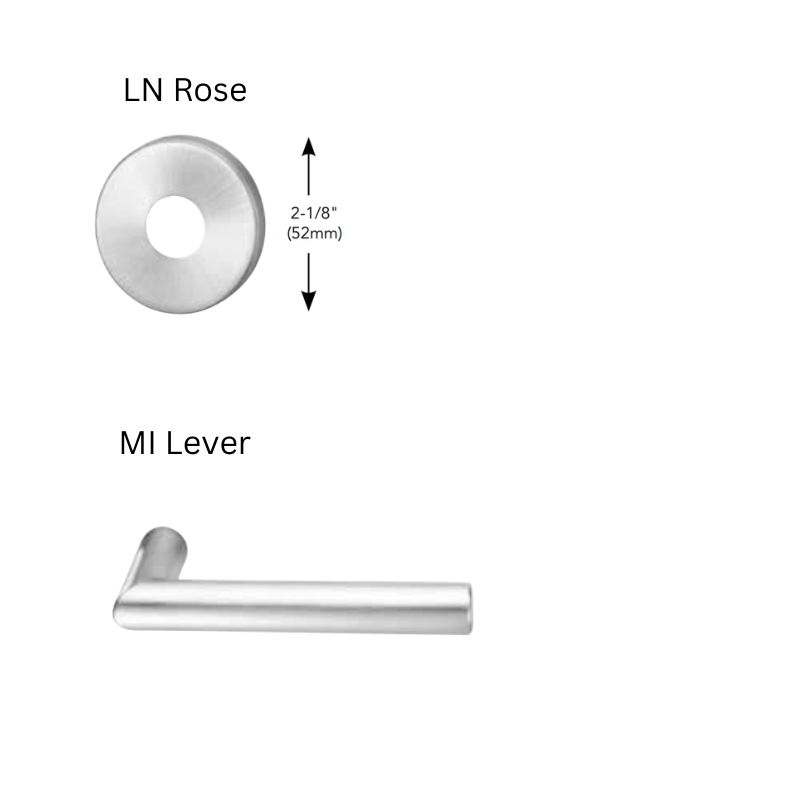

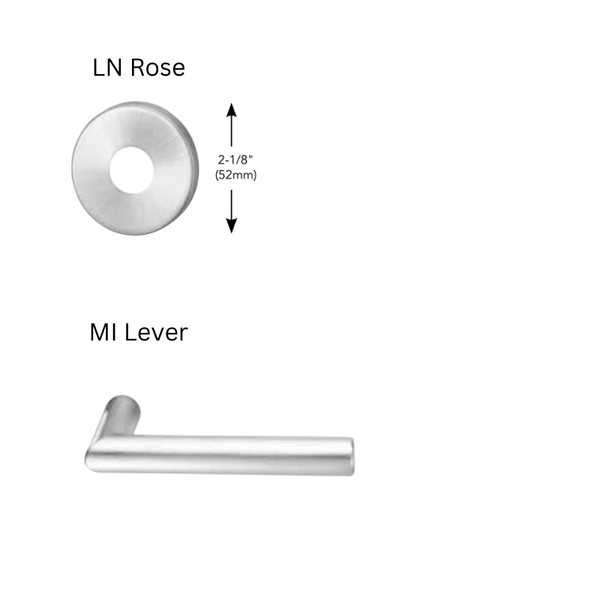

The Sargent 8204-LNMI-26D Mortise Lock comes LFIC Less Core with a Storeroom or Closet Function (Key Retracts Latch), an LN Rose, and an MI lever in a Satin Chrome Finish.
8200 Series Mortise Lock
The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.
Manufacturer | Sargent |
Grade | Grade 1 |
Origin | USA |
Unit of Measure | Each |
BAA Qualified | Yes |
Limited Warranty | 10 Years |
Fire Rated | 2 Hours {B} |
Function | 04 Storeroom Function |
ANSI Function |
F07 - Storeroom/Exit |
Lever/Knob Design |
L - Lever |
Rose/Escutcheon Design |
LNMI |
Cylinder Type |
LFIC |
Handing | Field Reversible |
Door Thickness | 1-3/4 In. |
Std. Latch Type | Dead Latch (Guarded) |
Std. Latch Backset Dim | 2-3/4 In. |
Lock Face Size | 8 In. x 1-1/4 In. |
Bolt Projection | 3/4 In. Latch |
Std. Strike Number | 82-0110 |
Std. Strike Type | ASA Strike |
Std. Strike Height | 4-7/8 In. |
Std. Strike Width | 1-1/4 In. |
Screws | Combination |
Product Type | Mortise Lock |
