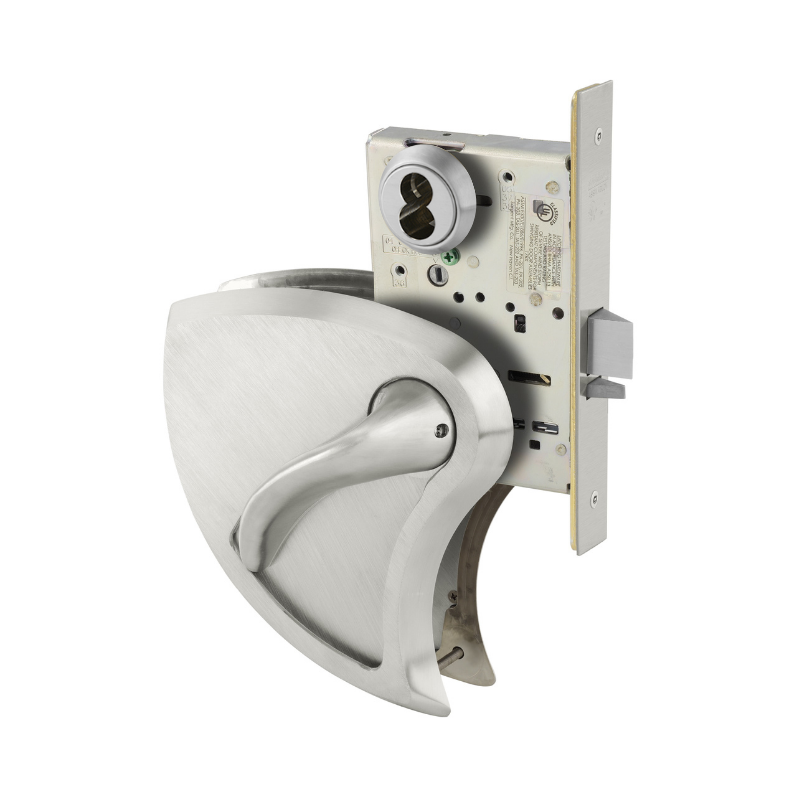

Sargent 60-8204-BHW-US32D Behavioral Health Mortise Lock, Storeroom Function, BHW Trim, LFIC Less Core, Satin Stainless Steel

  • SKU: 608204BHWUS32DLH
Sargent60-8204-BHW-US32D
Sargent 60-8204-BHW-US32D Behavioral Health Mortise Lock, Storeroom Function, BHW Trim, LFIC Less Core, Satin Stainless Steel
Sargent60-8204-BHW-US32D
Sargent 60-8204-BHW-US32D Behavioral Health Mortise Lock, Storeroom Function, BHW Trim, LFIC Less Core, Satin Stainless Steel
All SARGENT Products

Sargent 60-8204-BHW-US32D Behavioral Health Mortise Lock, Storeroom Function, BHW Trim, LFIC Less Core, Satin Stainless Steel

  • SKU: 608204BHWUS32DLH
Dhs. 6,241.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Handing: LH - Left Hand

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 60-8204-BHW-US32D Behavioral ...
Quantity
–
+
Dhs. 6,241.00
Sargent Mortise Cylinders - Multiple ...
Quantity
–
+
From Dhs. 438.00
Sargent 6300 LA LFIC Core, LA Keyway,...
Quantity
–
+
Dhs. 386.00
Total

Sargent 60-8204-BHW-US32D Behavioral Health Storeroom Function Mortise Lock, Key Retracts Latch, BHW Trim, Accepts LFIC Prep, Less Core, Field Reversible, 630 Satin Stainless Steel

The Sargent 60-8204-BHW-US32D Behavioral Health Mortise Lock features a storeroom function with a key-operated latch retraction. It includes BHW trim, is prepared for LFIC installation, comes without a core, and offers field reversibility. Finished in satin stainless steel (630), this lock is designed for reliable performance in behavioral health environments.

  • Storeroom Function:
    • Key outside retracts latchbolt
    • Trim outside locked at all times
    • Trim inside always retracts latchbolt
    • Auxiliary deadlatch
  • Uses standard mortise prep
  • LFIC Less Core
  • ANSI/BHMA Grade 1
  • Tapered surfaces on all components
  • Handed
  • ADA Compliant
  • 6 Lobe head security screws (Torx® type)
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Ligature Resistant
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 04 Storeroom Function
ANSI Function F07 - Storeroom/Exit
Lever/Knob Design BHW Lever
Cylinder Type LFIC Less Core
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock
