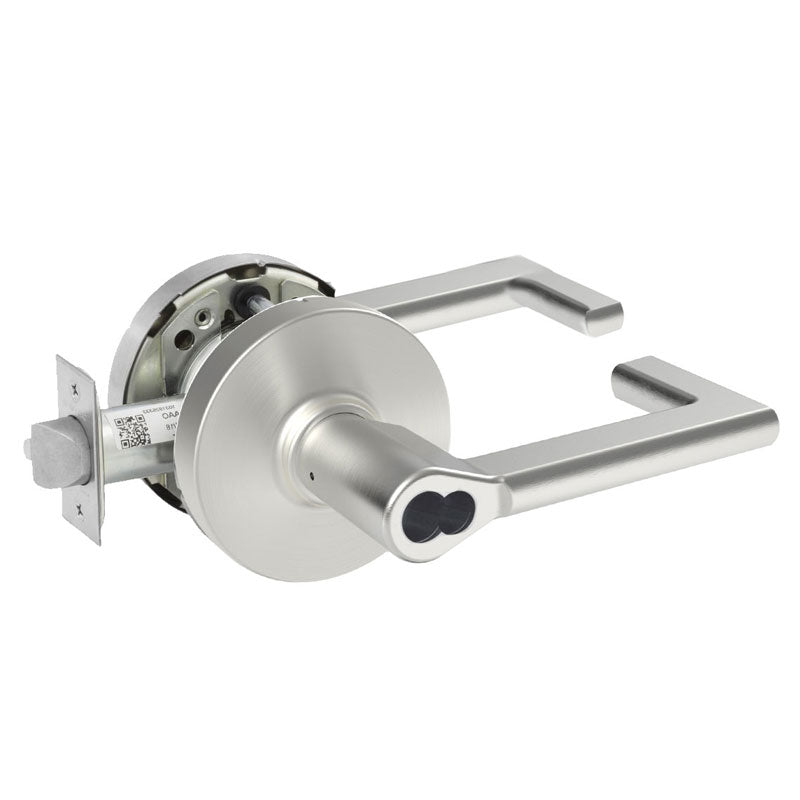

Sargent 60-10XG16-LND Classroom Security, Apartment, Exit or Privacy Function Cylindrical Lock, "L" Rose, "ND" Lever, 2 3/4 Backset, 4 7/8 Strike, 60 Accepts Large Format Interchangable, Disposable Plastic Core, Grade 1
The Sargent 60-10XG16-LND Cylindrical Lever Lock is ideal for high-security applications such as classrooms, apartments, exit doors, and privacy functions, ensuring dependable operation. Sargent 60-10XG16-LND features a 2-3/4" backset, 4-7/8" strike, has a 60 Option, that is 60 LFIC Large Format Interchangeable core, Less Core, an L Rose, and a ND Lever Design.
10X-Line Bored Lever Locks
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Features
- Compatible with several security key systems (Degree, Signature, KESO, etc.)
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
- Innovative push/turn button design prevents damage from door stops and walls
- 26 mechanical functions offered
- Available in 14 finishes with multiple lever designs
- Optional Microshield ® antimicrobial coating available
- Lockbody design supports all cylinder formats - from fixed to interchangeable core
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Complements the look of any design style
- Minimizes inventory stocking requirements
- Simplifies installation in new and retrofit applications
- Integrates with new or existing facility key systems
