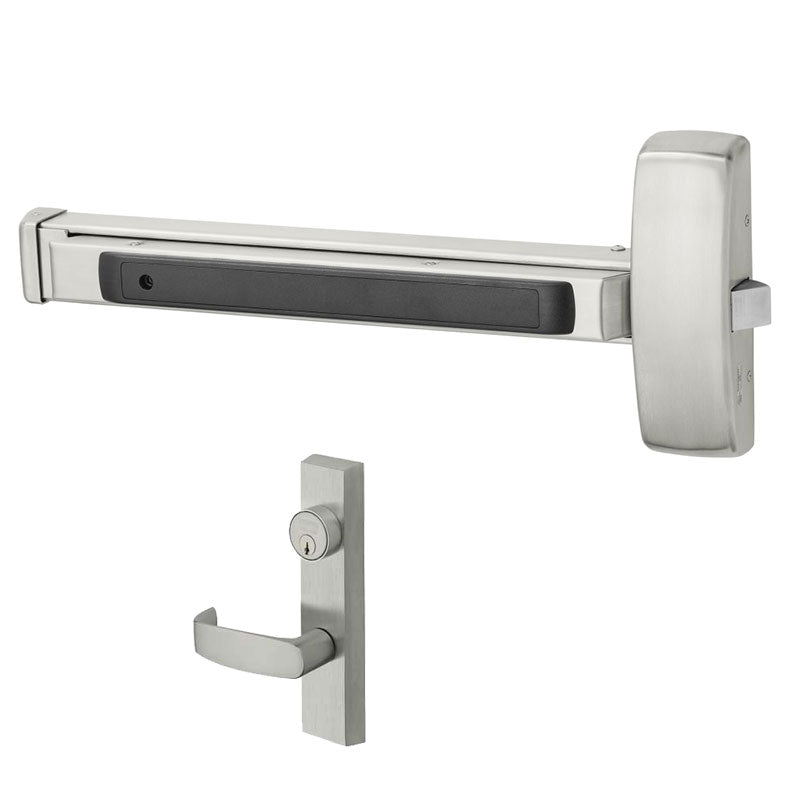

The Sargent 56-12-8804-E-ETL is a Fire Rated Rim Exit Device with an Electric Latch Retraction, ETL Trim, and 24"-32" Bar. Select Finishes US10B Oxidized Dull Bronze Or US32D Satin Stainless, and in Grade 1.
SARGENT Electric Latch Retraction exit device is the perfect choice for high traffic egress doors that require access control. This non-handed exit device rail is durable and easy to install. It utilizes a latch retraction motor rather than a solenoid, ensuring quiet operation ideal for locations such as conference rooms, theaters, and libraries. Once retracted, the door functions in a push/pull manner. The 56-exit device can be dogged for momentary ingress and egress and is commonly used in conjunction with an automatic door operator. The device can be dogged continuously on fire-rated devices that are tied into the building fire detection system.
Manufacturer | Sargent |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL10C & UL305 |
ANSI Number | ANSI/BHMA A156.3 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | 5 Years |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
ADA Compliance | Yes |
Physical Appearance | Wide Stile Pushpad |
Device Type | Rim |
Mechanical Function | Night Latch |
Device Length | 32" |
Hand | LHR or RHR |
Electric Options | Electric Latch Retraction |
Dogging Options | Less Dogging |
Includes Trim | Yes |
Trim Type | Lever |
Trim Design | Lever with Escutcheon |
Includes Cylinder(s) | Yes |
Cylinder Type | Rim |
Minimum Stile Size | 4 3/4" |
Door Material | Metal or Wood |
Door Width | 24" to 32" |
Door Thickness | 1 3/4" - 2 1/4" |
Fire Rated | Yes |
Reversible | Yes |
Product Type | Rim Exit Devices |
