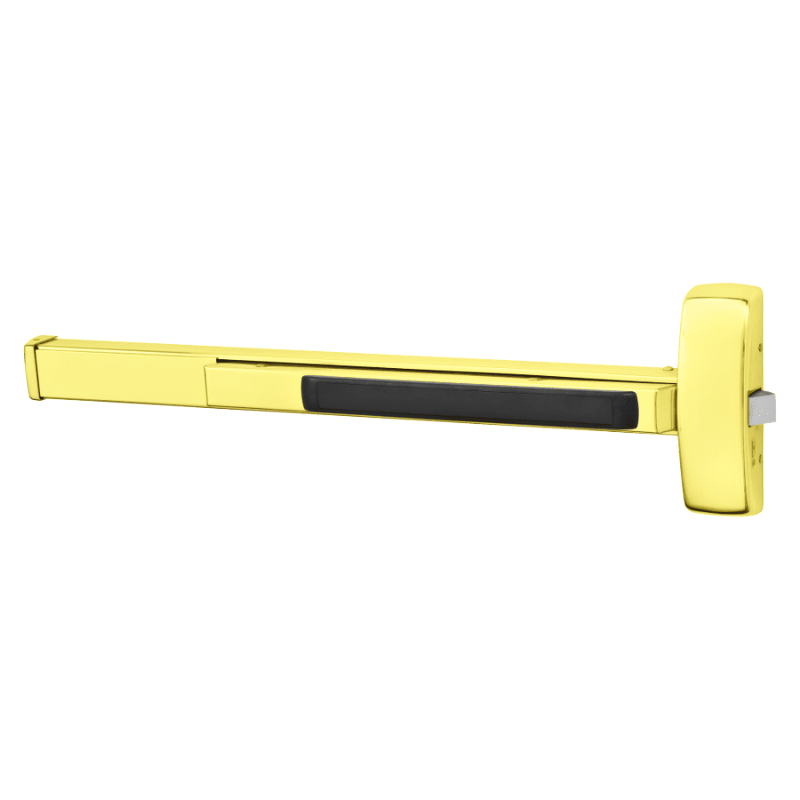

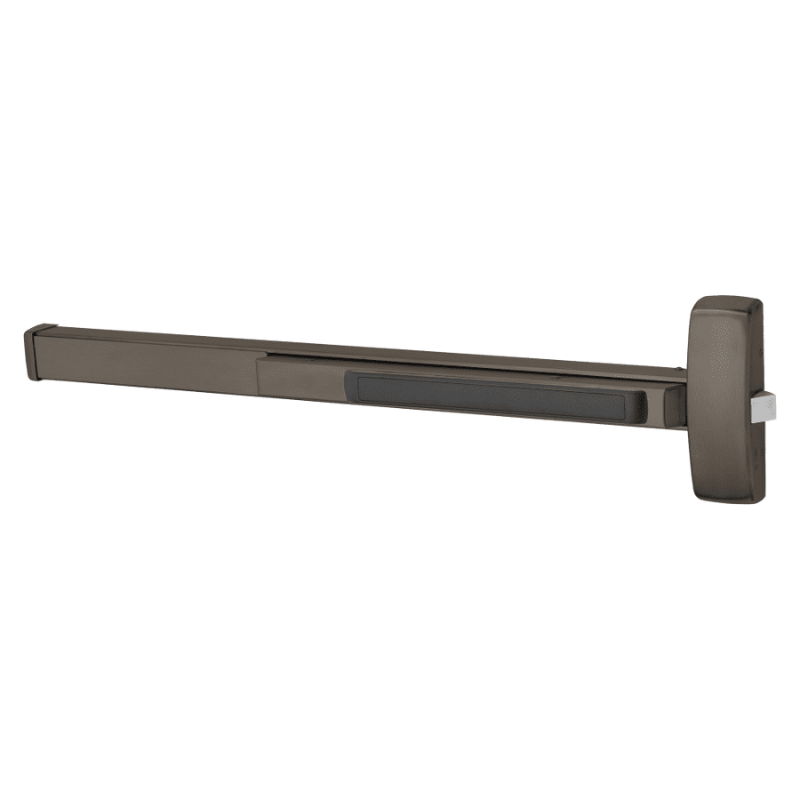

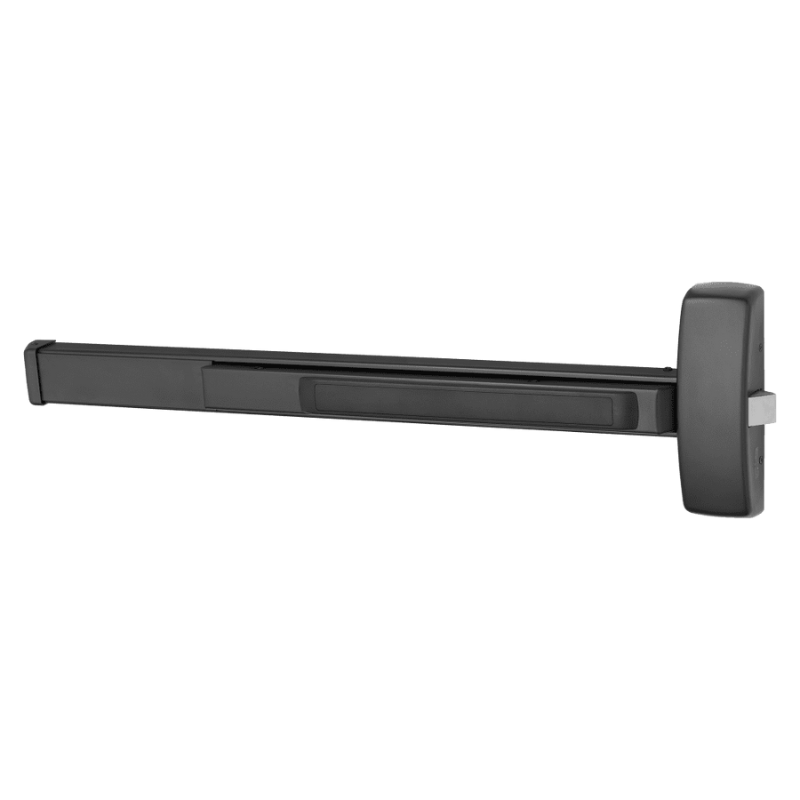

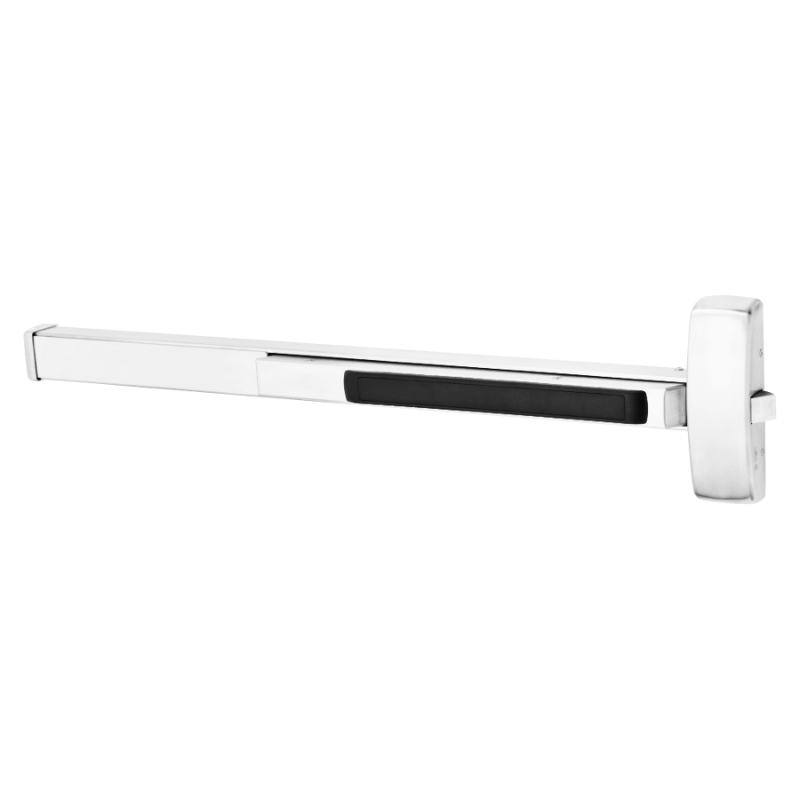

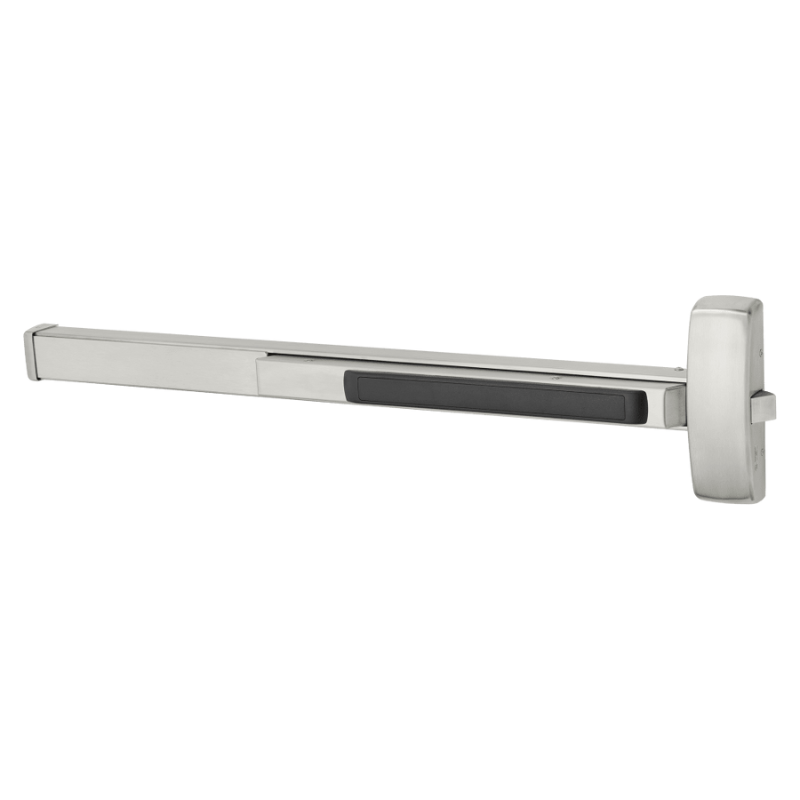

Sargent 55-56-12-8813G Fire Rated Rim Exit Device, Electric Latch Retraction, Request To Exit, Classroom Function, 43"-48" Door Width, No Dogging, Grade 1, Reversible, Trim Sold Separately

The Sargent 55-56-12-8813G is a Grade 1 fire-rated rim exit device designed for doors 43" to 48" wide. It features electric latch retraction and a request-to-exit function tailored for classroom use. This exit-only device includes no dogging and reversible operation, ensuring reliable security and compliance with safety standards.

55- Request-to-Exit Option
SARGENT Request-to-Exit Signal Switch option for exit devices provides push rail monitoring for a variety of applications; such as to sound an alarm, initialize a delayed egress system, or de-energize an electromagnetic lock.

56- Electric Latch Retraction Option
SARGENT’s Electric Latch Retraction exit device is the perfect choice for high-traffic egress doors that require access control. This non-handed exit device rail is durable and easy to install. It utilizes a latch retraction motor rather than a solenoid, ensuring quiet operation ideal for locations such as conference rooms, theaters, and libraries. Once retracted, the door functions in a push/pull manner.

8800 Series Rim Exit Devices

The 8800 Series is tailored for standard width stile applications on both wood and metal doors. This reversible rim exit device is renowned for setting industry benchmarks in durability and reliability. It forms an integral part of Sargent’s comprehensive range of exit devices, offering robust performance and trusted security solutions.

• Single point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 - Grade 1
• UL Fire and Panic listed
