Sargent 3828-F Rim Exit Device, Exit Only , 33-36" Device, Allen Key Dogging, Non-Handed

  • SKU: 3828FEN
Sargent 3828-F-EN Rim Exit Device, Multi-Function Device
Sargent 3828-F-EB Rim Exit Device, Multi-Function Device
Sargent 3828-F-EN Rim Exit Device, Multi-Function Device
Sargent 3828-F-EB Rim Exit Device, Multi-Function Device
All SARGENT Products

Sargent 3828-F Rim Exit Device, Exit Only , 33-36" Device, Allen Key Dogging, Non-Handed

  • SKU: 3828FEN
Dhs. 1,719.00/ea
Available (2‑3 Days)
2-3 Days Lead Time
Finish: EN Aluminum Enamel (689)
Handing Guide:
handing chart image

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 3828-F Rim Exit Device, Exit ...
Quantity
–
+
Dhs. 1,719.00
Sargent 28 Series Trims for 30 Series...
Quantity
–
+
From Dhs. 812.00
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From Dhs. 1,393.00
Total

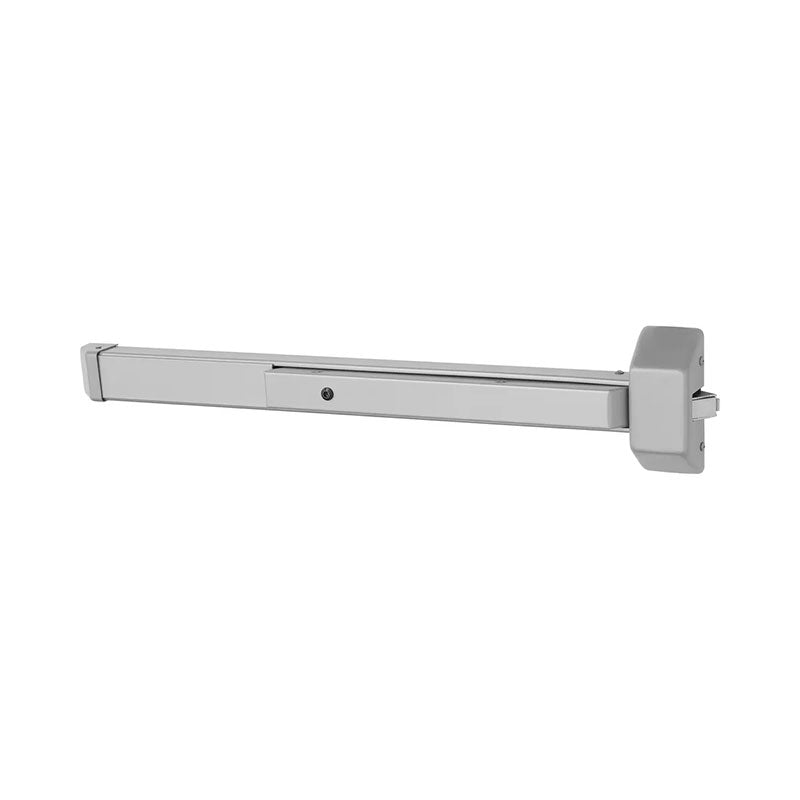

The Sargent 3828-F is a 36" Wide Stile Rim Exit Device that is Exit Only when just a Bar, but can be Multi-Function when paired with Sargent 28 Series Trims, is Allen Key Dogging, and is for use with 33"-36" door widths. The Sargent 3828-F Is Non-Handed and its Seven Functions are Determined By The Function Of The Trim.


Multi-Function Device: Trims below decide the function of the device;
Lever Trims:
  • 28-C-LL Classroom - Key in lever locks or unlocks lever.
  • 28-K-LL Night Latch - Key in Lever Retracts latchbolt.
  • 28-N-LL Night Latch - Lever operates only when key is in cylinder and turned.
  • 28-D-LL Dummy - Lever Rigid at all times & no outside trim
  • 28-L-LL Passage - Latchbolt operated by lever. (No Cylinder)
Knob Trims:
  • 28-C-OB Classroom - Key in knob locks or unlocks knob.
  • 28-K-OB Night Latch - Key in knob retracts latchbolt.
  • 28-L-OB Passage - Latchbolts operated by knob. (No Cylinder)
 Pull and Plate Trims:
  • 814-HTB Night Latch -Outside by pull and key. (3828 only)
  • 810-GTB Exit Only with Pull - Outside pull when push bar is locked down.
  • 802-GTB Exit Only - Black plate to cover 161 cutout.


      Sargent 3828 Series Rim Exit Devices
      A rugged exit device in a rim design.

      • Outside Trim: 28 series lever and rose trims, GTB Pulls and plates, OB knob and trims, and Thumb Piece trims
      • Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
      • Cover: steel
      • Chassis: Nonferrous alloy
      • Rail Assembly: Roll formed steel
      • End Cap: Steel
      • Hand: Non-handed
      • Latchbolt: Stainless steel 3/4" (19mm) throw
      • Strike: 649 packed standard
      • Dogging Feature: Allen-type key furnished standard (non-fire rated devices only)



      Manufacturer Sargent
      SKU 3828F
      Unit of Measure Each
      Finish 689/US28 or 690/US20
      Finish Description Aluminum Painted or Dark Bronze Painted

      Physical Appearance Wide Stile Pushpad
      Device Type Rim
      Mechanical Function Exit Only
      Device Length 36"
      Hand Non-Handed
      Dogging Options Allen Key Dogging
      Includes Trim No
      Trim Type Less trim
      Includes Cylinder(s) No
      Cylinder Type Non-Keyed
      Door Width 33" to 36"
      Fire Rated No
      Reversible Yes
      Product Type Rim Exit Devices

      Product Cut Sheet

      Panic Handing Chart
