Description

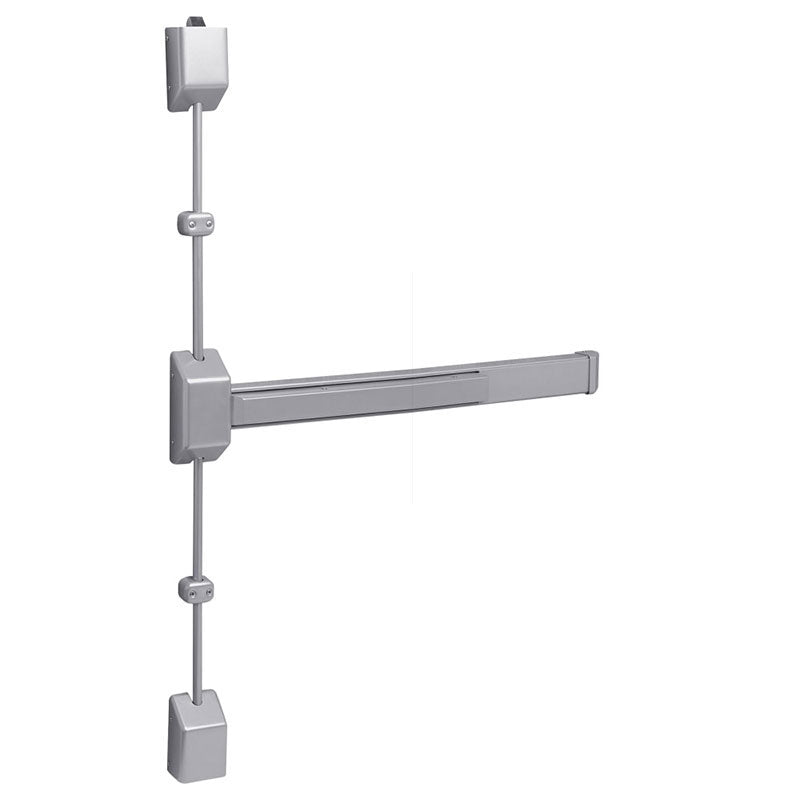

The Sargent 3727-E-84 is a 32" Surface Vertical Rod Exit Device that is Exit Only when just a Bar but can be Multi-Function when paired with Sargent 28 Series Trims, has Allen Key Dogging, is for use with 1 3/4 thick doors, with 24"-32" door widths and 84" door height with a 41" standard AFF. The Sargent 3727-E-84 Is Non-Handed and its Six Functions are Determined By The Function Of The Trim.
Lever Trims:
Lever Trims:
- 28-C-LL Classroom - Key in lever locks or unlocks lever.
- 28-K-LL Night Latch - Key in Lever Retracts latchbolt.
- 28-N-LL Night Latch - Lever operates only when key is in cylinder and turned.
- 28-D-LL Dummy - Lever Rigid at all times & no outside trim
- 28-L-LL Passage - Latchbolt operated by lever. (No Cylinder)
- 28-C-OB Classroom - Key in knob locks or unlocks knob.
- 28-K-OB Night Latch - Key in knob retracts latchbolt.
- 28-L-OB Passage - Latchbolts operated by knob. (No Cylinder)
- 814-HTB Night Latch -Outside by pull and key. (3828 only)
- 810-GTB Exit Only with Pull - Outside pull when push bar is locked down.
- 802-GTB Exit Only - Black plate to cover 161 cutout.
Sargent 3727 Series SVR Exit Devices
A rugged exit device in surface vertical rod and rim designs.
- Outside Trim: 28 series lever and rose trims, GTB Pulls and Plates, OB knob trims and thumb piece trims
- Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
- Cover: steel
- Chassis: Nonferrous alloy
- Rail Assembly: Roll-formed steel
- Hand: Reversible. The device is packed with standard LHRB
- Latchbolt: Brass
- Strikes: 646 Top Strike (Panic & fire), 655 Bottom Strike (fire), 624 Bottom Strike (Panic)
- Dogging Feature: Allen-type key furnished standard (Non-Fire Rated Devices only)
Product Specs
| Manufacturer | Sargent |
| SKU | 3727E-84 |
| Unit of Measure | Each |
| Finish | 689/US28 or 690/US20 |
| Finish Description | Aluminum Painted or Dark Bronze Painted |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Exit Only |
| Device Length | 32" |
| Hand | Non-Handed |
| Dogging Options | Allen Key Dogging |
| Includes Trim | No |
| Trim Type | Less trim |
| Includes Cylinder(s) | No |
| Cylinder Type | Non-Keyed |
| Door Width | 24" to 32" |
| Door Height | 84" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Surface Vertical Rod Exit Devices |
