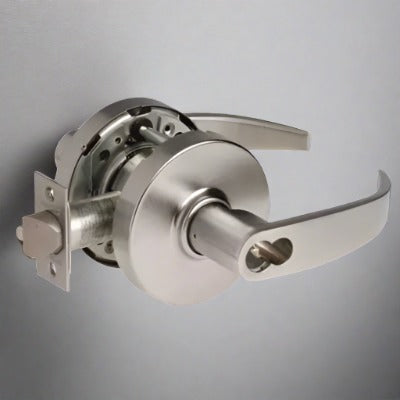

Sargent 28-60-10G04-LP-US26D Storeroom or Closet Cylindrical Lever Lockset, LFIC Less Core, L Rose, P Lever, Satin Chrome

  • SKU: 286010G04LPUS26D
Sargent 60-10G04-LP-US26D
Sargent 60-10G04-LP-US26D
All SARGENT Products

Sargent 28-60-10G04-LP-US26D Storeroom or Closet Cylindrical Lever Lockset, LFIC Less Core, L Rose, P Lever, Satin Chrome

  • SKU: 286010G04LPUS26D
Dhs. 1,413.00/ea
Discontinued
Discontinued

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 28-60-10G04-LP-US26D Storeroo...
Quantity
–
+
Dhs. 1,413.00
Sargent 6300 LA LFIC Core, LA Keyway,...
Quantity
–
+
Dhs. 387.00
Total

The Sargent 28-60-10G04-LP features a Storeroom or Closet function with a 2-3/4" backset, 4-7/8" strike, and L Rose/P Lever, prepped for a Large Format Interchangeable Core (LFIC). Sargent's 10 Line Lock is ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times making this lock perfect for institutions, schools, office spaces, healthcare facilities, storerooms, and classrooms.

Vendor ASSA ABLOY
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Heavy Duty
Limited Warranty 7 Years
Fire Rated 3 Hours {A}

ANSI Function
F86 - Storeroom
Handing Not Handed
Door Thickness 1-3/4" - 2"
Std. Latch Number 44491
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 2-1/4" x 1-1/8"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 808
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Dust Box None
Screws Combination
Product Type Cylindrical Lock
Product Cut Sheet
