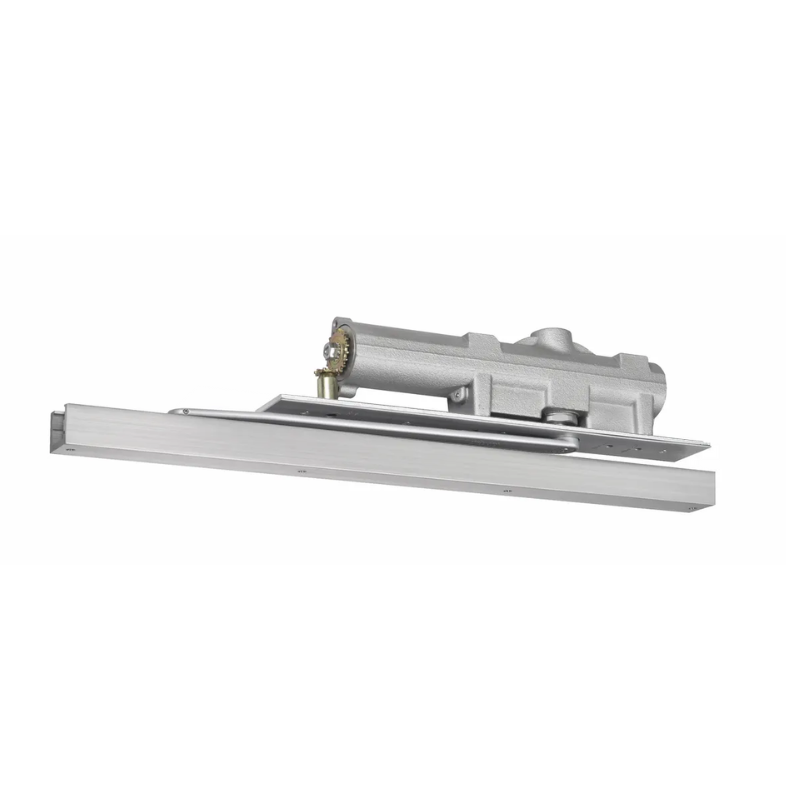

Sargent 268-OB Overhead Concealed Door Closer, Concealed Track Arm With Standard Arm With Bumper to Assist Back Check, For 1 3/4 Thick Door, Max Door Opening 140 Degree
The Sargent 268-OB Overhead Concealed Door Closer features a concealed track and standard arm with a bumper to enhance back check performance. Designed for doors 1 3/4 inches thick, it allows a maximum door opening of 140 degrees.
H - Hold Open Arm
| Arm Type |
Max Door Opening |
Degree of Hold Open or Stop |
OB - Standard Arm with Bumper to assist
backcheck |
140° |
140° |
- The rubber bumper in the track is to assist backcheck in light-duty interior applications only
268 Series Concealed Closers
The 268 Series Overhead Concealed Door Closer features a fully hidden arm, track, and closer when the door is shut, delivering superior resistance to wear and damage. Its discreet design combines durability with a refined appearance, making it well-suited for demanding interior environments and upscale architectural settings.
- 1-1/2" diameter piston for superior door control
- Captured valves provide easy door control while preventing accidental valve removable
- All weather fluid allows closer to operator properly in extreme cold or hot environments without readjustment
- Concealed in-frame design inhibits possible tampering
- Pressure relief valves allow closer to absorb abusive forces, preventing damage to doors and frames
- Provides security and aesthetics by completely hiding the door closer, frame and arm in the door and frame
