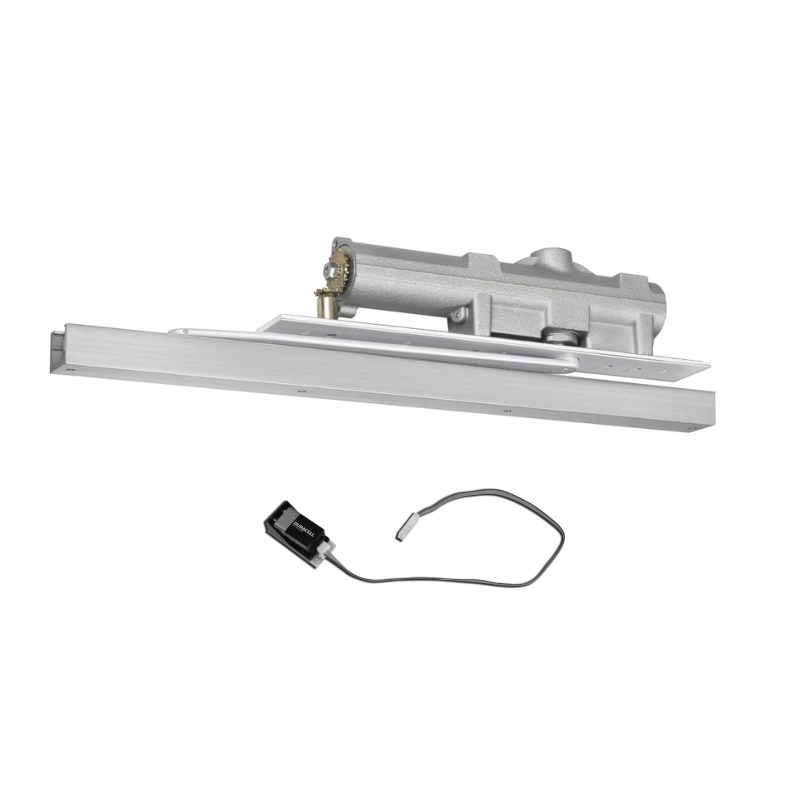

Sargent 268-CSPS Overhead Concealed Door Closer Security Pack features a concealed track arm and includes a switch, designed specifically for doors with a thickness of 1 3/4 inches.

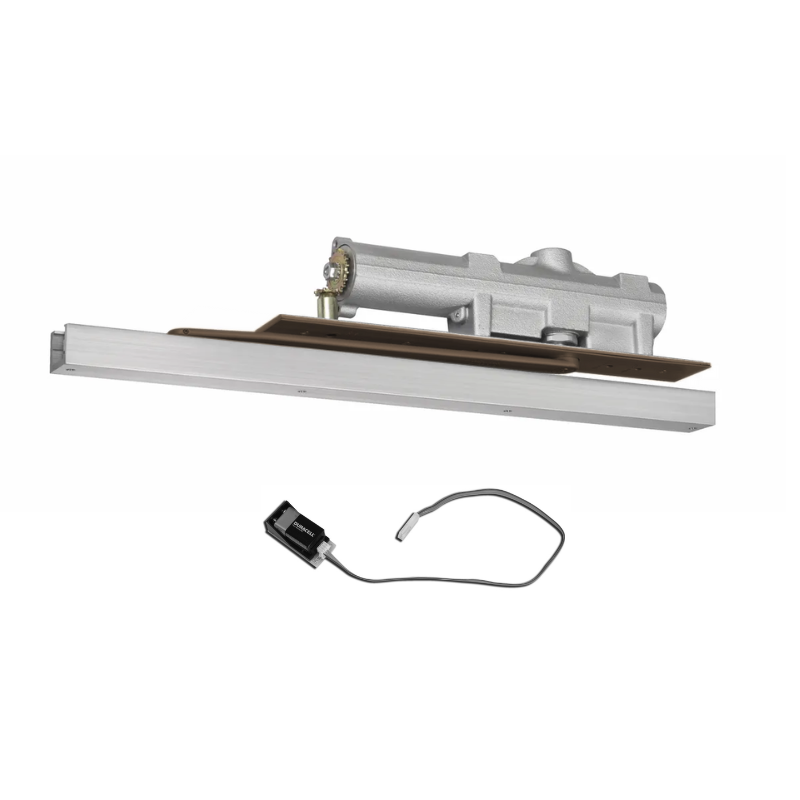

The Sargent 268-CSPD is an overhead concealed door closer designed for doors 1 3/4 inches thick. This security pack features a double switch and a concealed track arm, ensuring reliable and discreet door control.
CSPS - Closer Security Pack with Switch
- Includes security track that automatically ejects foreign material
- Heavy duty steel cover plate protects adjusting valves from possible tampering
- Tamper resistant security screws provided for track and closer cover plate
- Requires different templating from standard 268 or 269
- With a field adjustable single pole double throw Door Position Switch to interface with security and alarm systems
- Contacts are rated at 120/250VAC, 10.1 amp resistive load
- Switch equipped with a 3 wire color coded 12" 18 gauge wire harness
- Switch contact point can be adjusted without removing closer from frame
268 Series Concealed Closers
The 268 Series Overhead Concealed Door Closer features a fully hidden arm, track, and closer when the door is shut, delivering superior resistance to wear and damage. Its discreet design combines durability with a refined appearance, making it well-suited for demanding interior environments and upscale architectural settings.
- 1-1/2" diameter piston for superior door control
- Captured valves provide easy door control while preventing accidental valve removable
- All weather fluid allows closer to operator properly in extreme cold or hot environments without readjustment
- Concealed in-frame design inhibits possible tampering
- Pressure relief valves allow closer to absorb abusive forces, preventing damage to doors and frames
- Provides security and aesthetics by completely hiding the door closer, frame and arm in the door and frame
