Description

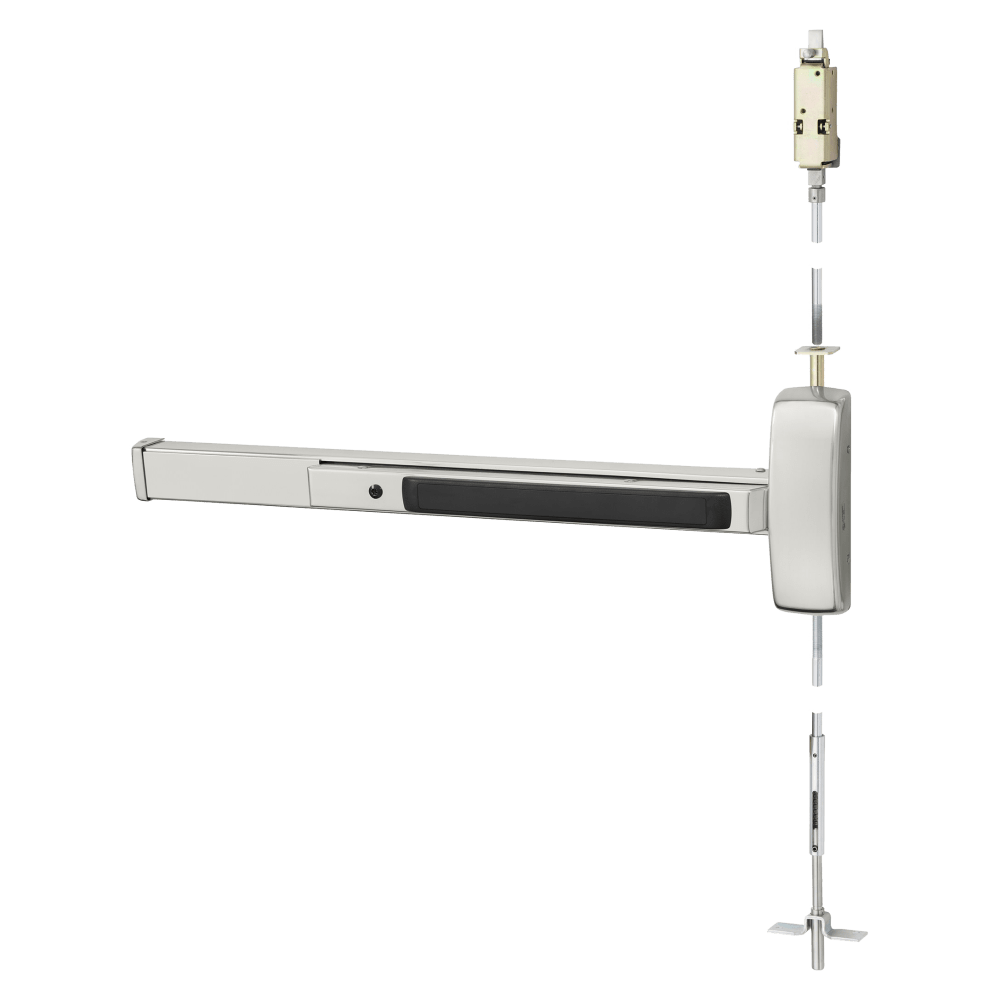

Sargent 12-WD8615J-120-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Passage Function, For 37-42 Inch Door, 120 Inch Door Height, Less Dogging, Grade 1, Satin Stainless Steel Finish
Professional-grade exit device engineered for high-traffic commercial applications. This concealed vertical rod system delivers reliable emergency egress compliance with fire-rated construction and Grade 1 durability. The wide stile pushpad mechanism accommodates standard passage function without dogging capability, making it ideal for controlled access environments. Precision-engineered for 37-42 inch door widths at 120 inch heights, the satin stainless steel finish resists corrosion while maintaining a refined aesthetic. Meets stringent building codes and safety standards for institutional and commercial facilities demanding dependable performance.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
-
UL10C (Fire) and UL305 (Panic) listed
Product Specs
| Manufacturer | Sargent |
| SKU | 12-WD8615J-120-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
42" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Passage |
| Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
37" to 42" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
120" |
