Description

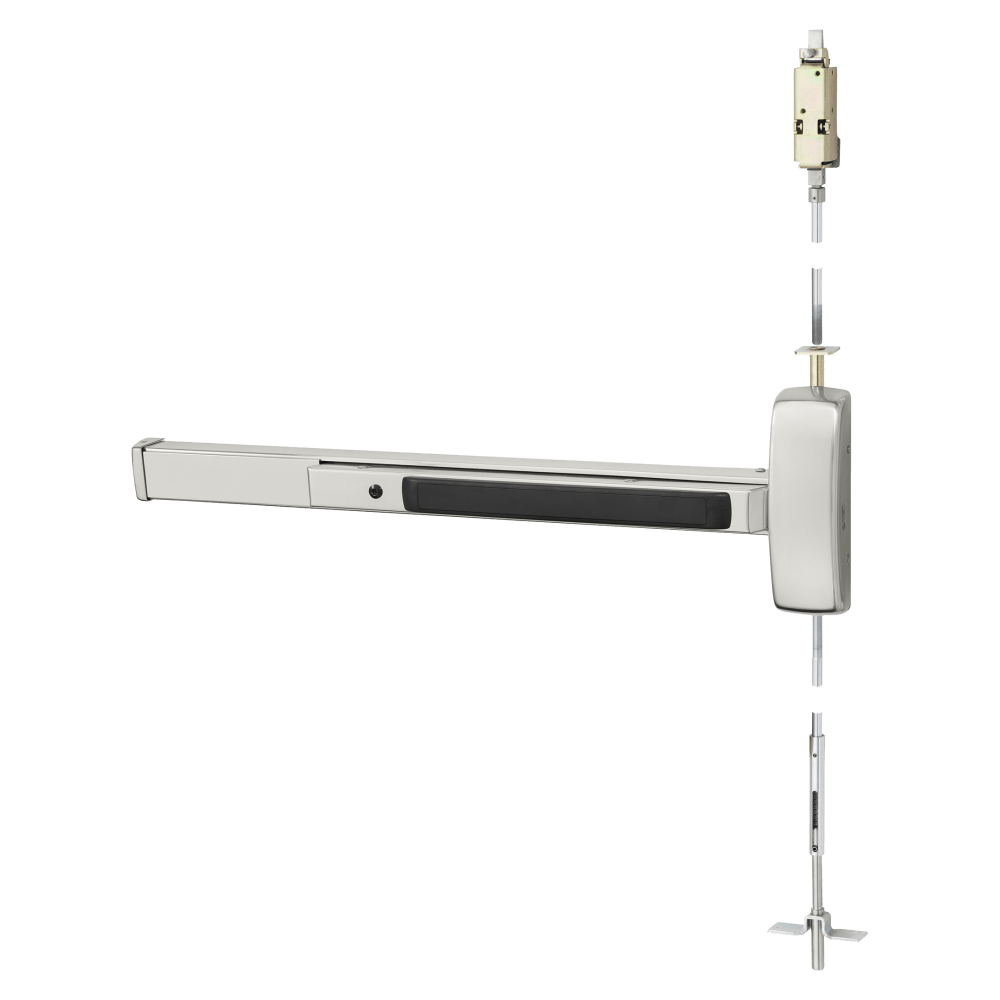

Sargent 12-WD8613J-84-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Classroom Function, For 37-42 Inch Door, 84 Inch Door Height, Less Dogging, Grade 1, Satin Stainless Steel Finish
The Sargent 12-WD8613J-84-US32D Fire Rated Concealed Vertical Rod Exit Device delivers Grade 1 performance, life-safety compliance, and a clean, modern look for commercial and institutional applications. Designed for 37–42 inch wide doors with an 84 inch door height, this fire-rated exit device features a concealed vertical rod system and a wide stile pushpad for smooth, dependable egress while preserving a streamlined door appearance. The classroom function allows controlled outside access while always enabling free exit from the inside, making it ideal for schools and secure facilities. Finished in durable satin stainless steel (US32D) and built without dogging for fire door requirements, this exit device offers long-lasting reliability, code compliance, and professional-grade security.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
Product Specs
| Manufacturer | Sargent |
| SKU | 12-WD8613J-84-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
42" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Classroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
37" to 42" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
84" |
