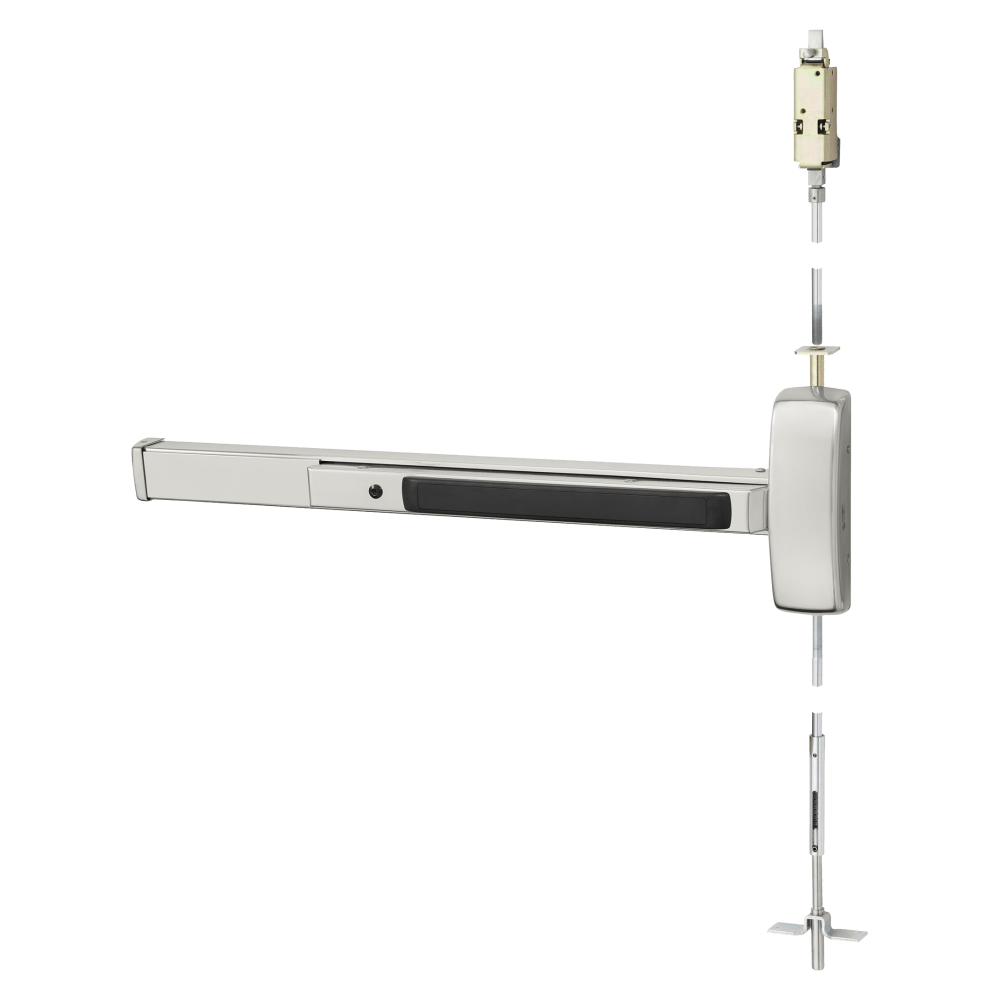

Sargent 12-WD8613J-120-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Classroom Function, For 37-42 Inch Door, 120 Inch Door Height, Less Dogging, Grade 1, Satin Stainless Steel Finish
The Sargent 12-WD8613J-120-US32D Fire Rated Concealed Vertical Rod Exit Device is a premium Grade 1 solution engineered for safety, durability, and clean aesthetics in high-traffic commercial and institutional environments. Designed for 37–42 inch wide doors with a 120 inch door height, this fire-rated exit device features a concealed vertical rod system and a wide stile pushpad for smooth, reliable egress while maintaining a streamlined appearance. The classroom function provides controlled entry from the outside while allowing free exit at all times, making it ideal for schools and secure facilities. Finished in satin stainless steel (US32D) and constructed to meet rigorous life-safety standards, this device delivers long-lasting performance, code compliance, and dependable operation, without dogging for fire door applications.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
Product Specs
| Manufacturer | Sargent |
| SKU | 12-WD8613J-120-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
42" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Classroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
37" to 42" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
120" |
