Description

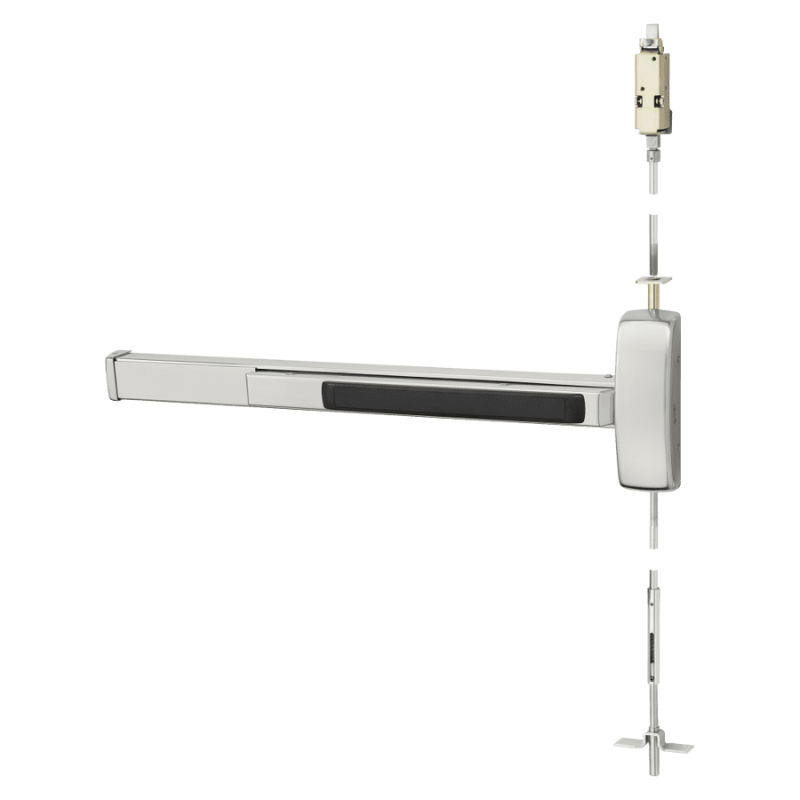

Sargent 12-WD8606J-120-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Storeroom Function, Less Trim, 37-42 Inch Door, 120 Inch Door Height, Less Dogging, Grade 1, 630 Satin Stainless Steel Finish
Sargent 12-WD8606J-120-US32D fire-rated exit device combines emergency egress compliance with access control in a single integrated solution. The concealed vertical rod mechanism operates within the door frame for a streamlined appearance, while storeroom functionality prevents unauthorized entry. Designed to Grade 1 specifications, it accommodates mid-width doors from 37-42 inches with 120 inch height capacity. The wide stile pushpad ensures responsive emergency activation, and the 630 satin stainless steel construction delivers lasting corrosion resistance in demanding commercial environments where security and safety standards are paramount.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
-
UL10C (Fire) and UL305 (Panic) listed
Product Specs
| Manufacturer | Sargent |
| SKU | 12-WD8606F-120-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
Technical Specs
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
| Physical Appearance | Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
| Includes Cylinder(s) | No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
42" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Storeroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
37" to 42" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
120" |
