Sargent 12-NB-8710-J-84 Fire Rated Surface Vertical Rod Exit Device, Less Bottom Rod Exit Only, 84" Dr Height, 37"-42" Dr Widths

  • SKU: 12NB8710J84US32DLHR
Sargent 12-NB-8710-J-84-US32D Fire Rated Surface Vertical Rod Exit Device
Sargent 12-NB-8710-J-84-US10B Fire Rated Surface Vertical Rod Exit Device
Sargent 12-NB-8710-J-84-US32D Fire Rated Surface Vertical Rod Exit Device
Sargent 12-NB-8710-J-84-US10B Fire Rated Surface Vertical Rod Exit Device
All SARGENT Products

Sargent 12-NB-8710-J-84 Fire Rated Surface Vertical Rod Exit Device, Less Bottom Rod Exit Only, 84" Dr Height, 37"-42" Dr Widths

  • SKU: 12NB8710J84US32DLHR
Dhs. 6,041.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 12-NB-8710-J-84 Fire Rated Su...
Quantity
–
+
From Dhs. 6,041.00
Sargent 710-ETL Exit Device, Dummy Le...
Quantity
–
+
Dhs. 2,035.00
Total

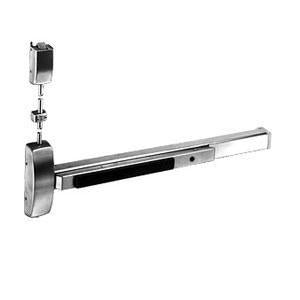

The Sargent 12-NB-8710-J Fire Rated (12) Less Bottom Rod (NB) Surface Vertical Rod Exit Device is Exit Only (no outside operation); the NB-8710-84 is for an 84" Door Height, single-point top latching, and a 37"-42" door width (the J bar is 42 " long and can be cut down to 37"). It comes in US32D/630 Satin Stainless Steel And US10B/613 Oil-Rubbed Bronze Finish options.

Features
 • Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Exit Only
Device Length 42"
Hand Optional
Mechanical Options Less Bottom Rod
Top Strike 646
Includes Trim No
Minimum Stile Size 4 1/2" with Trim, 3 1/2" without Trim
Door Material Metal or Wood
Door Width 37" - 42"
Door Height 84"
Door Thickness 1 3/4" to 2 1/4"
Fire Rated No
Product Type Surface Vertical Rod Exit Devices



Product Cut Sheet

Panic Handing Chart
