Sargent 12-NB-8710-G-84 Fire Rated Surface Vertical Rod Exit Device, Less Bottom Rod Exit Only, 84" Dr Height, 43"-48" Dr Widths

  • SKU: 12NB8710G84US32DLHR
Sargent NB-8710-84-US32D
Sargent NB-8710-84-US10B
Sargent NB-8710-84-US32D
Sargent NB-8710-84-US10B
All SARGENT Products

Sargent 12-NB-8710-G-84 Fire Rated Surface Vertical Rod Exit Device, Less Bottom Rod Exit Only, 84" Dr Height, 43"-48" Dr Widths

  • SKU: 12NB8710G84US32DLHR
Dhs. 6,331.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 12-NB-8710-G-84 Fire Rated Su...
Quantity
–
+
From Dhs. 6,331.00
Sargent 710-ETL Dummy Lever Trim Non ...
Quantity
–
+
From Dhs. 1,877.00
Total

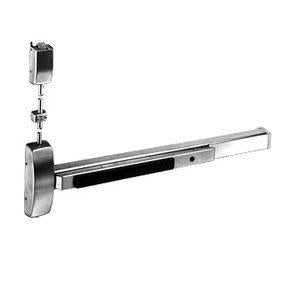

The Sargent 12-NB-8710-G-84 Fire Rated (12) Less Bottom Rod (NB) Surface Vertical Rod Exit Device is Exit Only (no outside operation). It is for an 84" Door Height, single-point top latching, For 43"-48" Door widths,  rail (G 48" can be cut down to 43") and comes in US32D/630 Satin Stainless Steel And US10B/613 Oil-Rubbed Bronze Finish options.

Features
 • Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Exit Only
Device Length 48"
Mechanical Options Less Bottom Rod
Top Strike 646
Includes Trim No
Trim Type Less Trim
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 3 1/2"
Door Material Metal or Wood
Door Width 43" - 48"
Door Height 84"
Door Thickness 1 3/4" to 2 1/4"
Fire Rated Yes
Reversible No
Product Type Surface Vertical Rod Exit Devices


Product Cut Sheet

Panic Handing Chart
