Description

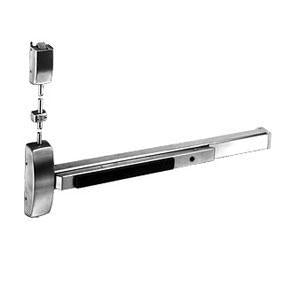

The Sargent 12-NB-8710-F Fire Rated (12) Less Bottom Rod (NB) Surface Vertical Rod Exit Device is Exit Only (no outside operation). The NB-8710-84 is for an 84" Door Height, single-point top latching, 33"-36" door widths, and rail (F 36" can be cut down to 32" length). It comes in US32D/630 Satin Stainless Steel And US10B/613 Oil-Rubbed Bronze Finish options.
• Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Exit Only |
| Device Length | 36" |
| Mechanical Options | Less Bottom Rod |
| Top Strike | 646 |
| Includes Trim | No |
| Trim Type | Less Trim |
| Includes Cylinder(s) | No |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 3 1/2" |
| Door Material | Metal or Wood |
| Door Width | 33" - 36" |
| Door Height | 84" |
| Door Thickness | 1 3/4" to 2 1/4" |
| Fire Rated | Yes |
| Reversible | No |
| Product Type | Surface Vertical Rod Exit Devices |
