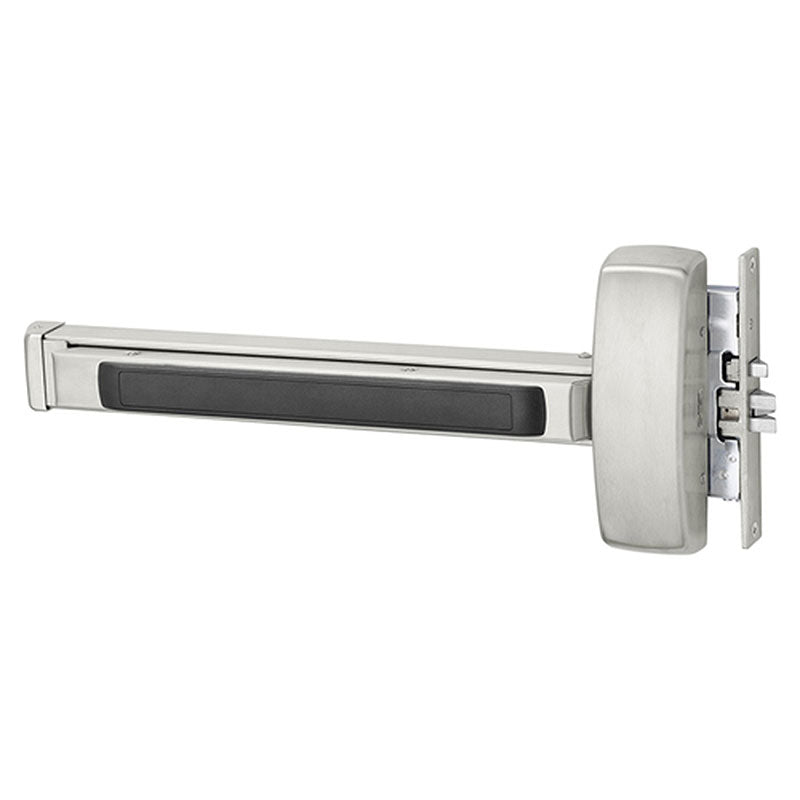

Sargent 12-8904E-US32D Mortise Exit Bar, Wide Stile Pushpad, Fire Rated, 32" Bar, Night Latch Function, Satin Stainless Steel

SKU: 128904EUS32DRHR

All SARGENT Products

Sargent 12-8904E-US32D Mortise Exit Bar, Wide Stile Pushpad, Fire Rated, 32" Bar, Night Latch Function, Satin Stainless Steel

SKU: 128904EUS32DRHR

Dhs. 5,819.00/ea

Available (4 Weeks)

4 Weeks Lead Time

Choose your options

Sargent Handing: RHR Right Hand Reverse

Variant

Quantity:

Qty

Send2Mobile

Need It Faster ? (+Dhs. 2,618.00)

Buy Complete Door Hardware Set

Sargent 704-ETL-US26D Exit Device Trim, Night Latch

Sargent 704-ETL-LC Exit Device Trim, ...

Quantity

–

+

From Dhs. 1,602.00

Total

Description
Product Specs
Technical Specs
Document Center
Handing Chart

Description

The Sargent 12-8904E-US32D is a Fire Rated Mortise Device Exit Bar, with a Wide Stile Pushpad, is 32" Long and accommodates door 24"-32" wide, is Night Latch Function, comes Less Dogging, is handed Left Hand Reverse, is Grade 1, and comes in Satin Stainless Steel Finish

8900 Series Mortise Exit Devices

The 8900 Series is for single-door applications

8900 Mortise Lock Exit Device has concealed single-point guarded latching for additional security and is designed for standard-width stile applications on wood and metal doors.

Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" specify thickness and order as a 31- option. 4 1/2" (114mm) minimum stile
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Product Specs

Manufacturer	Sargent
SKU	12-8904E
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	3 Hours {A}
Burglar Rated	No
ADA Compliance	No

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Mortise
Mechanical Function	Night Latch
Device Length	32"
Hand	LHR or RHR
Dogging Options	Less Dogging
Includes Trim	Yes
Trim Type	Cylinder Only
Includes Cylinder(s)	Yes
Cylinder Type	1 3/4" Mortise
Minimum Stile Size	4 1/2"
Door Material	Metal
Door Width	24" to 32"
Door Thickness	1 3/4" - 2 1/4"
Fire Rated	Yes
Reversible	No
Product Type	Mortise Exit Devices
