Description

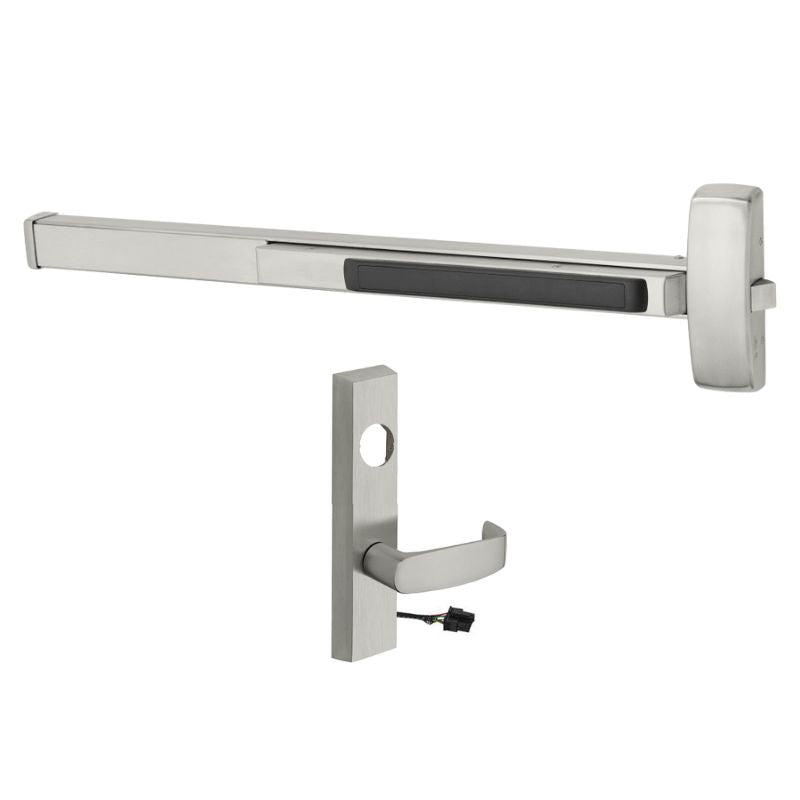

Sargent 12-8876-J-ETL-24V Fire Rated Rim Exit Device, 24V Fail Secure, L-Lever, Power off Unlocks Lever Key retracts Latch, 37-42 Inch Door, Less Cylinder, No Dogging, Grade 1
The Sargent 12-8876-J-ETL-24V Fire Rated Rim Exit Device is designed for 37-42 inch doors and is compatible with the 76 Electrified ET Trim. It features a 24V Fail Secure mechanism and an L-Lever that allows the lever to be unlocked in case of power failure. The lever can also retract the latch using a key. This Grade 1 device does not require a cylinder and does not have a dogging option.
76 Electrified ET Trim - Fail Secure
776-8-ETL-24V-LC Electrified Lever Trim, ETL Trim, 24V, Fail Secure Power Off, Locks Lever, Key Retracts Latch, Less Cylinder
Product Specs
| Manufacturer | Sargent |
| SKU | 12-8876J |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | Yes |
Technical Specs
| Technical Specs | |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 42" |
| Hand | LHR or RHR |
| Dogging Options | Less Dogging |
| Includes Trim | No |
| Trim Design | Keyed Electric Lever |
| Trim Part No. | 776-8 ETJ 24V |
| Includes Cylinder(s) | Yes |
| Cylinder Type | Rim |
| Keyway | LA Keyway |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 37" to 42" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
