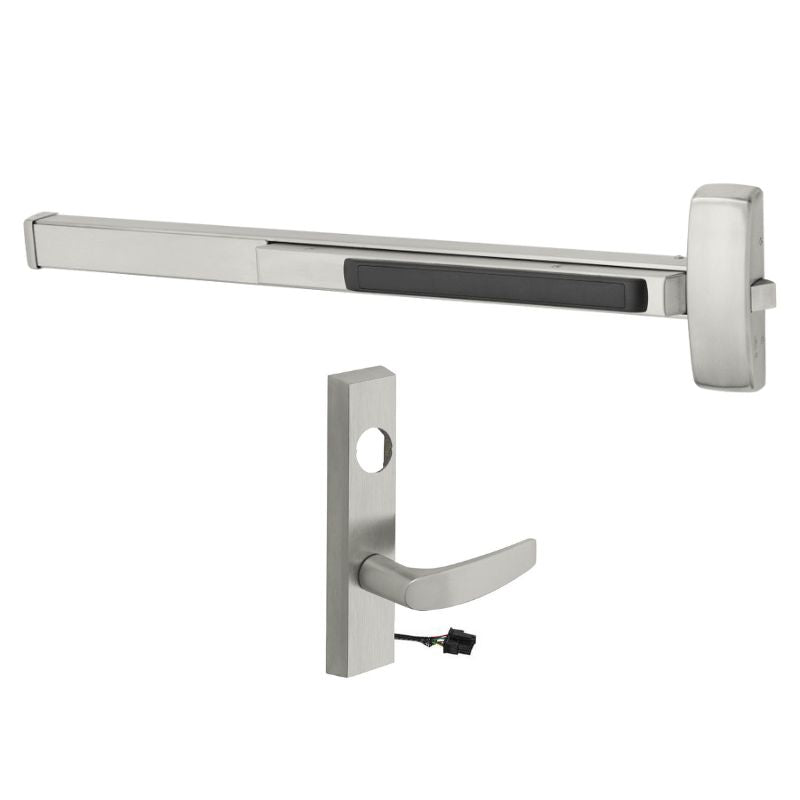

Sargent 12-8876-J-ETB-12V Fire Rated Rim Exit Device, For 37-42 Inch Door, With 76 Electrified ET Trim

  • SKU: 128876JETB12VUS32DLHR
Sargent 12-8876-J-ETB-12V-US32D
Sargent 12-8876-J-ETB-12V-US32D
Sargent 12-8876-J-ETB-12V-US10B
All SARGENT Products

Sargent 12-8876-J-ETB-12V Fire Rated Rim Exit Device, For 37-42 Inch Door, With 76 Electrified ET Trim

  • SKU: 128876JETB12VUS32DLHR
  • ✓
    Available (1‑2 Weeks)
    1-2 Weeks Lead Time
Your Price
Dhs. 7,599.00/ea
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 12-8876-J-ETB-12V Fire Rated ...
Quantity
–
+
From Dhs. 7,599.00
Sargent Rim Cylinders - Multiple Keyw...
Quantity
–
+
From Dhs. 417.00
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From Dhs. 1,488.00
Total

Sargent 12-8876-J-ETB-12V Fire Rated Rim Exit Device, 12V Fail Secure, B-Lever, Power off Unlocks Lever Key retracts Latch, 37-42 Inch Door, Less Cylinder, No Dogging, Grade 1

The Sargent 12-8876-J-ETB-12V Fire Rated Rim Exit Device is designed for 37-42 inch doors and is compatible with the 76 Electrified ET Trim. It features a 12V Fail Secure mechanism and an B-Lever that allows the lever to be unlocked in case of power failure. The lever can also retract the latch using a key. This Grade 1 device does not require a cylinder and does not have a dogging option.

76 Electrified ET Trim - Fail Secure
776-8-ETB-12V-LC Electrified Lever Trim, ETB Trim, 12V, Fail Secure Power Off, Locks Lever, Key Retracts Latch, Less Cylinder

Manufacturer Sargent
SKU 12-8876J
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes

Technical Specs
Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Device to Accept Electrified Trim
Device Length 42"
Hand LHR or RHR
Dogging Options Less Dogging
Includes Trim No
Trim Design Keyed Electric Lever
Trim Part No. 776-8 ETB
Includes Cylinder(s) Yes
Cylinder Type Rim
Keyway LA Keyway
Minimum Stile Size 4 3/4"
Door Material Metal or Wood
Door Width 37" to 42"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
